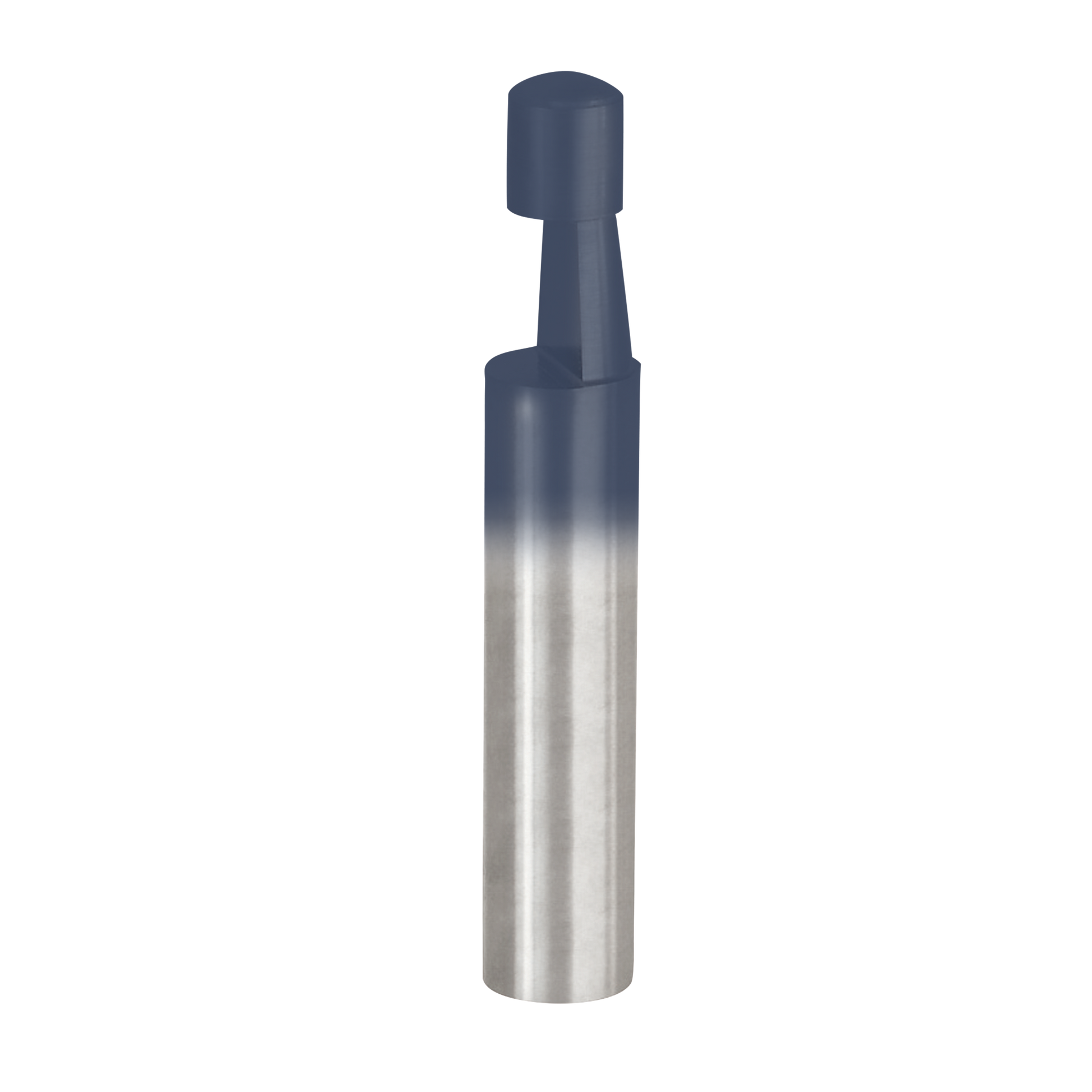

1/4" (Dia.) Bevel Trim Bit with 1/4" ShankFrom the ManufacturerFreud's solid carbide bevel trim bit trims and produces a 7 degree bevel to give a finished look to plastic laminates. The self piloting feature eliminates the expense and upkeep of a ball bearing assembly. Covered by Freud's limited lifetime warranty.

• Angle 7 , Bearing Dia. 3/16", Number of Cutters 2, Overall Dia. 1/4", Overall Length 1-1/2", Shank Dia. 1/4", Carbide Height 1/4"
• Black I.C.E. coating for cool cutting edge and superior chip evacuation
• Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Weight	0.11 lb
Height	1.65 in.
Length	4.90 in.
Width	1.65 in.
Inventory Number	DIA66100
MPN	66-100
