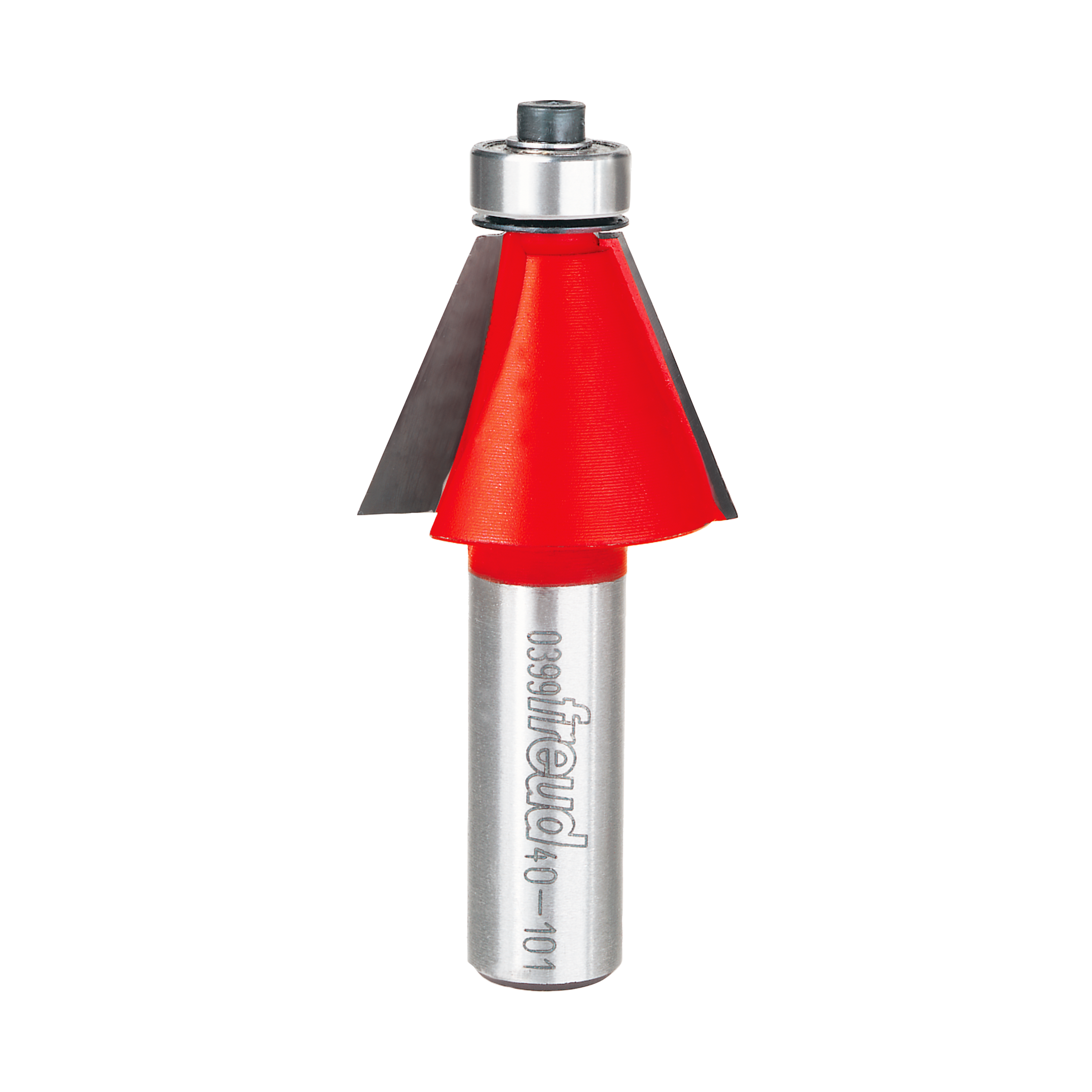

1-1/4" (Dia.) Chamfer BitFrom the ManufacturerChamfer bits will form a uniform bevel on the edge of the work piece to add character while keeping crisp, geometric lines. Chamfer size is adjusted by changing the height of the bit. Covered by Freud's limited lifetime warranty.

• Angle 22-1/2 , Bearing Dia. 1/2", Number of Cutters 2, Overall Dia. 1-1/4", Overall Length 2-5/8", Shank Dia. 1/2", Carbide Height 7/8"
• Chamfer size easily adjusts by changing the height of the bit or moving the fence
• Cuts all composition materials, plywood, hardwood, and softwood
• Use on hand-held and table-mounted routers
• Freud Perma-SHIELD Coating

Weight	0.27 lb
Height	1.65 in.
Length	4.95 in.
Width	1.65 in.
Inventory Number	DIA40101
MPN	40-101
