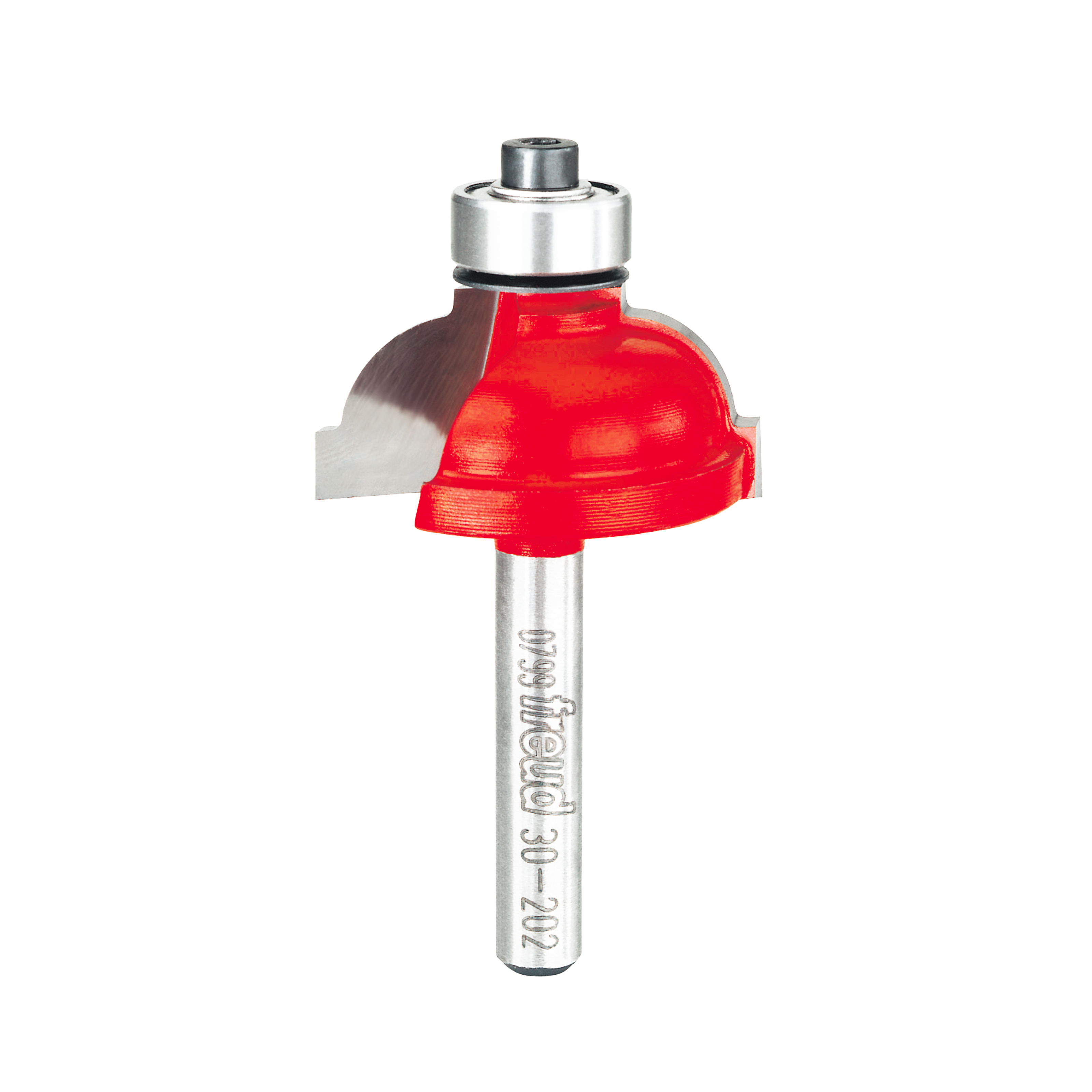

5/16" Radius Cove & Fillet BitFrom the ManufacturerFreud cove bits have an upward shear angle for a more efficient and smoother cut. This shear angle makes the bit slice the wood similar to the way a craftsman uses a hand plane. Covered by Freud's limited lifetime warranty.

• Bearing Dia. 1/2", Number of Cutters 2, Overall Dia. 1-1/4", Overall Length 2-3/16", Shank Dia. 1/4", Carbide Height 19/32", Radius 5/16"
• Elegant decorative shape for traditional furniture
• By simply raising the bit, you can create a standard cove profile
• Use on hand-held and table-mounted routers
• Cuts all composition materials, plywood, hardwood, and softwood
• Freud Perma-SHIELD Coating

Weight	0.21 lb
Height	1.50 in.
Length	4.80 in.
Width	1.50 in.
Inventory Number	DIA30202
MPN	30-202
