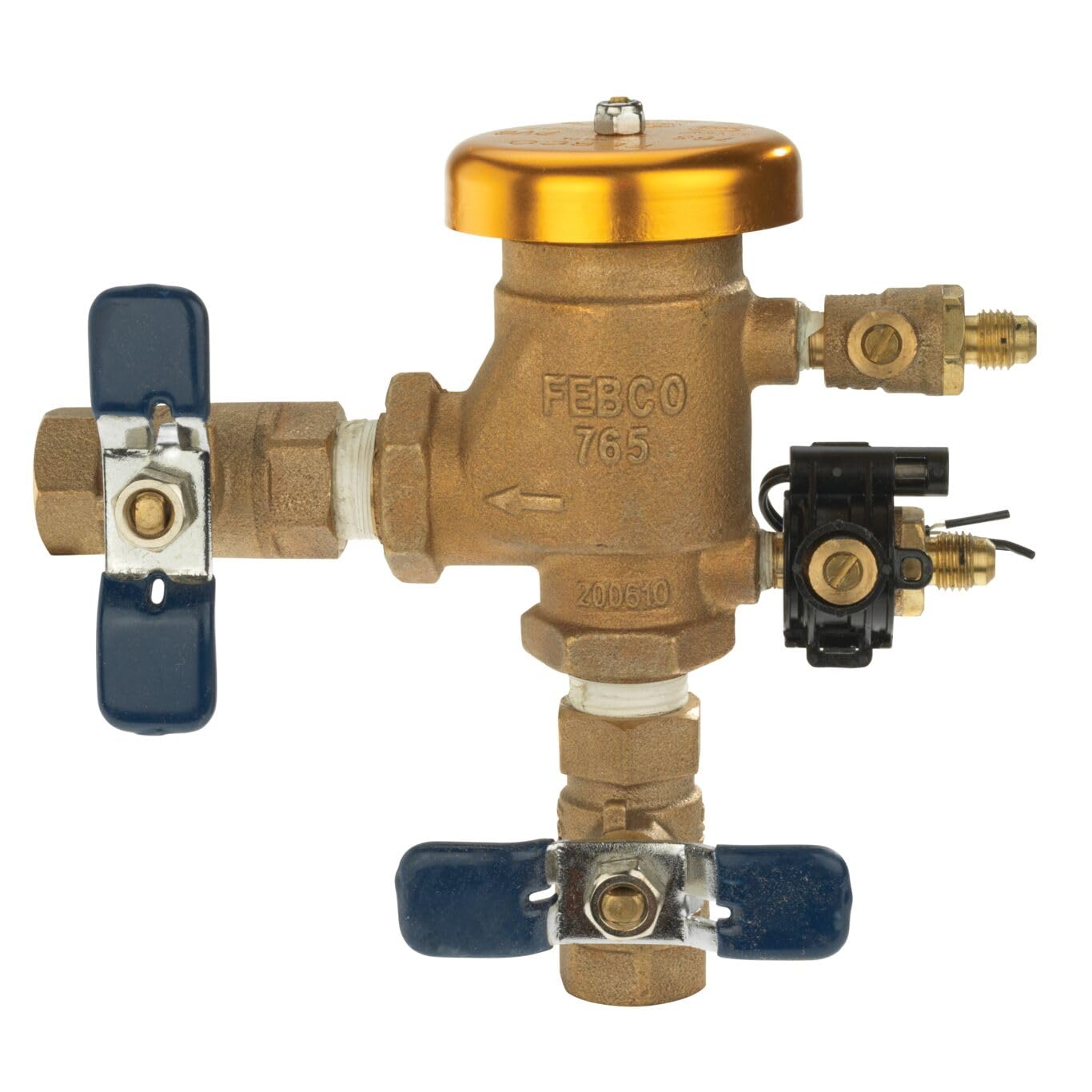

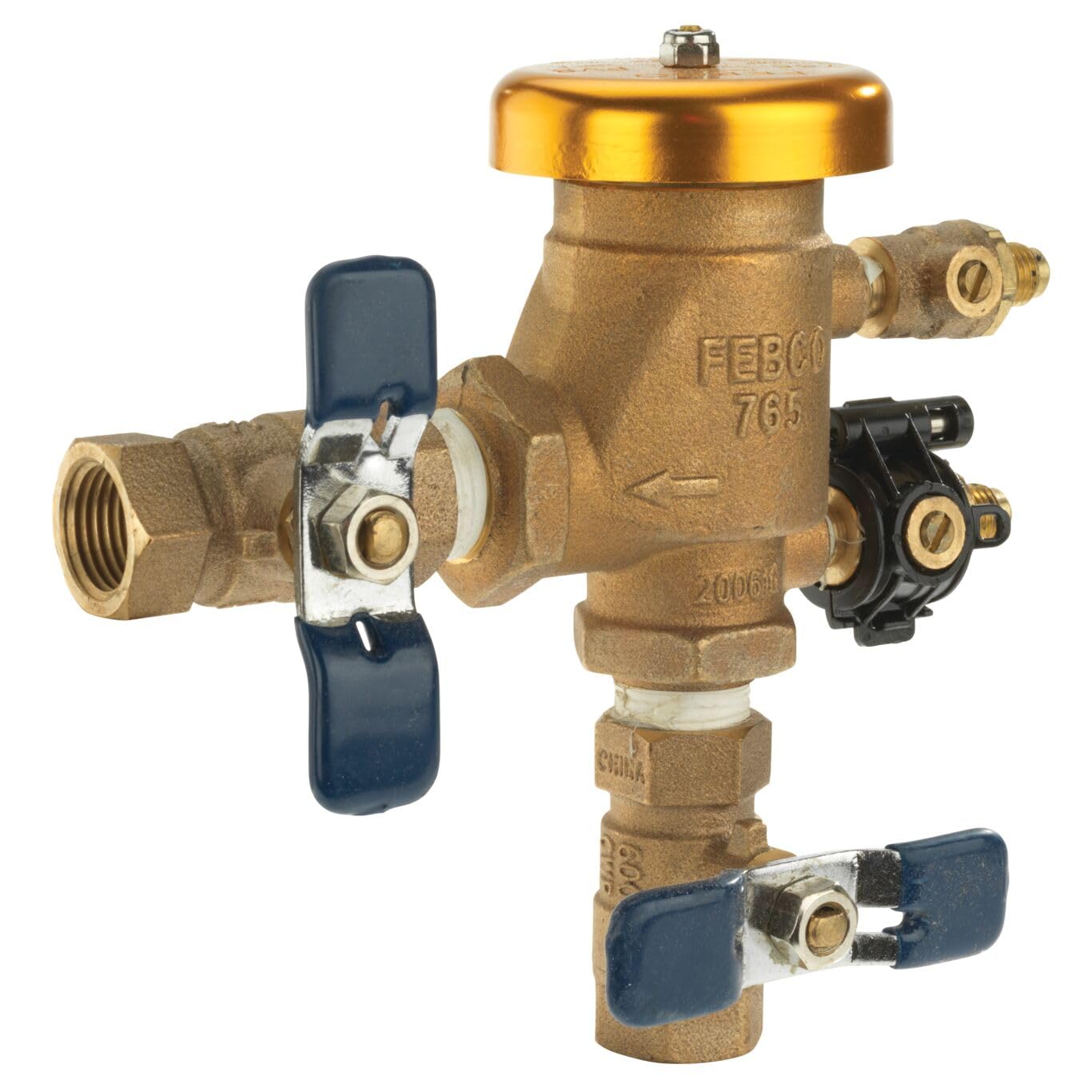

Series 765 Pressure Vacuum Breakers include a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for building management systems (BMS), irrigation management systems (IMS), and Wi-Fi networks. This series is designed to provide protection against back siphonage of toxic or non-toxic liquids. They feature a durable bronze body and Check Valve and air opening port in one assembly. Maximum working pressure is 150 psi (10.3 bar).

Weight	3.1 lb
Collection	765
Connection Size	1/2 in.
Connection Type	Threaded
Height	6.25 in.
Length	6.75 in.
Type	Vacuum Breakers
Width	2.50 in.
Inventory Number	FEBT765CBV
MPN	T765CBV
