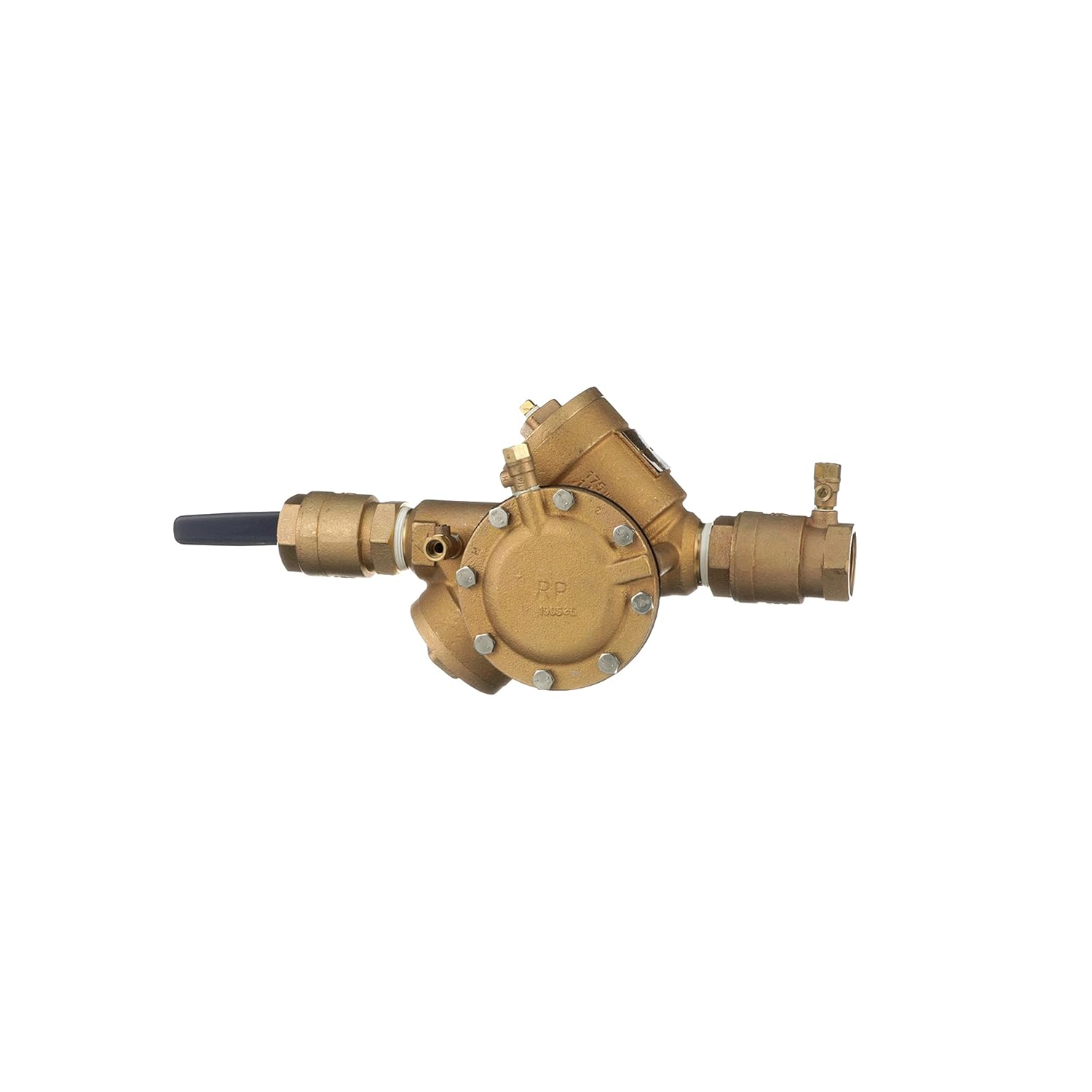

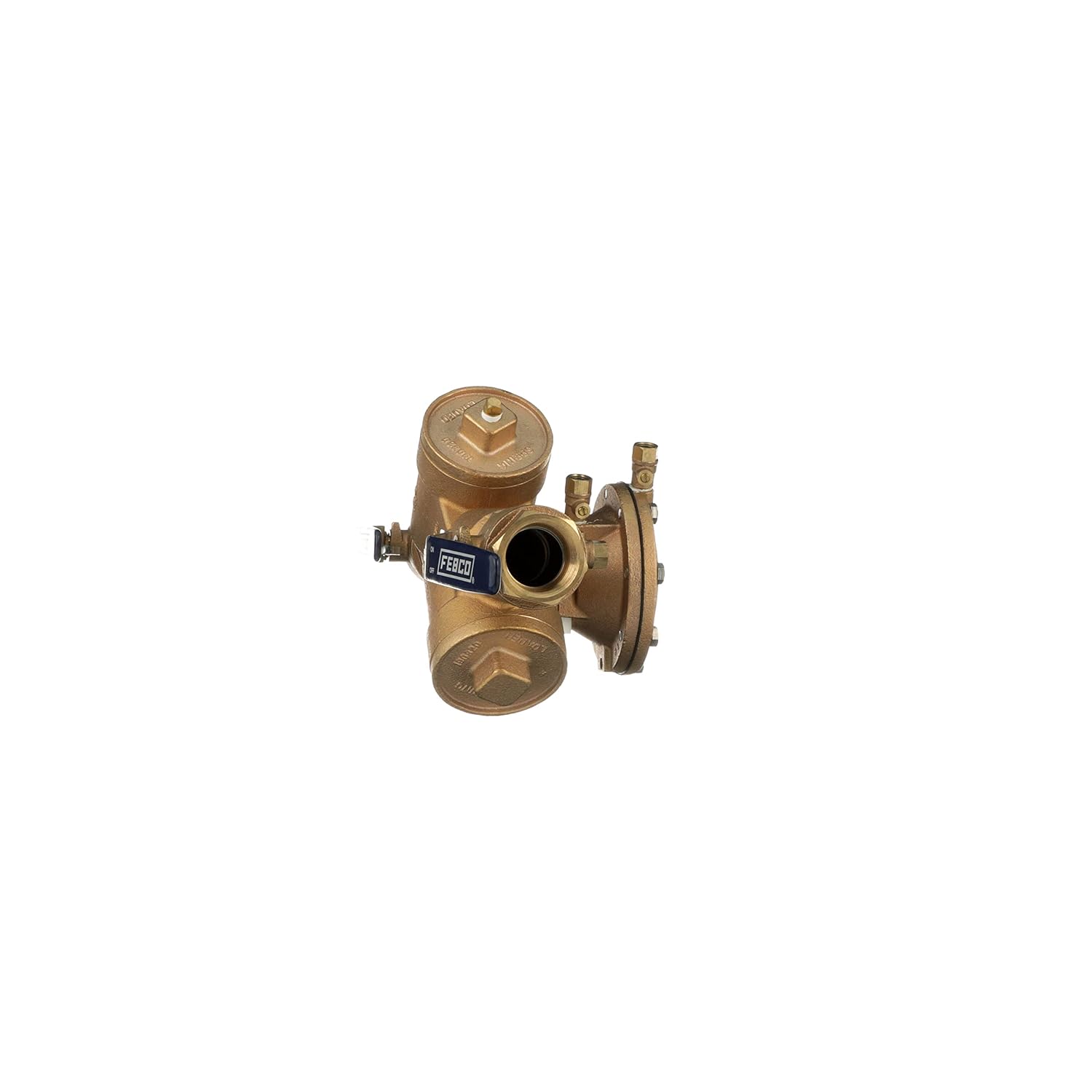

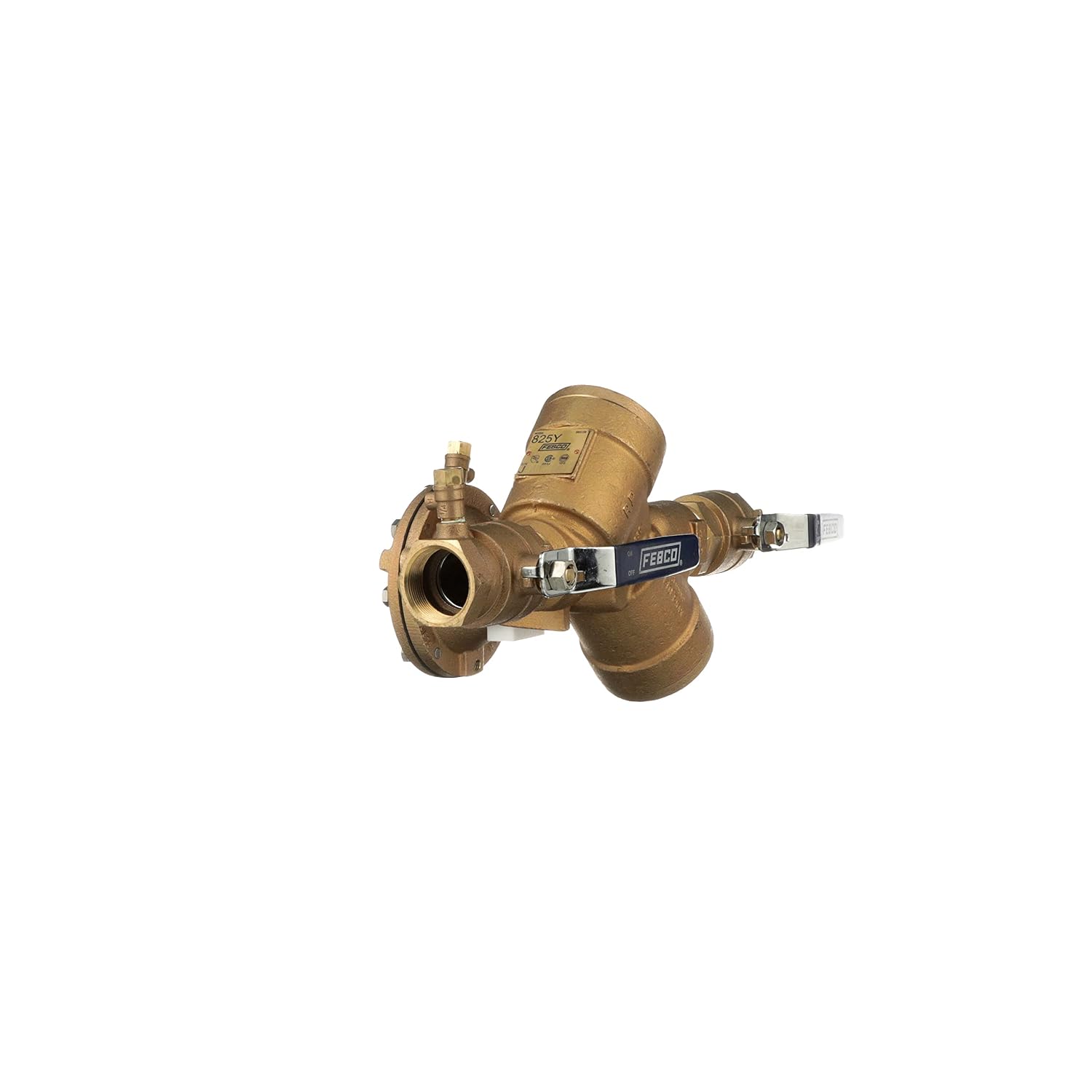

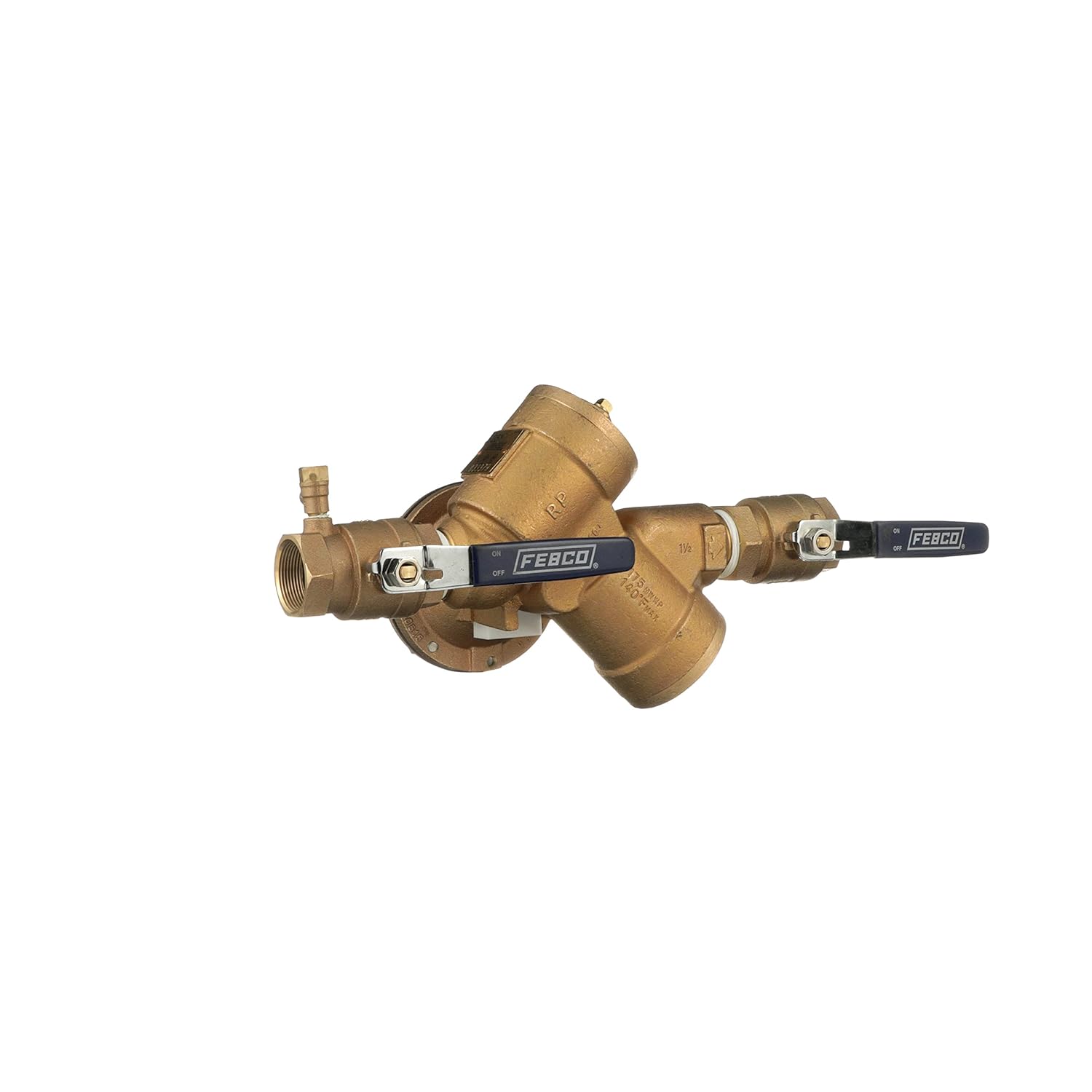

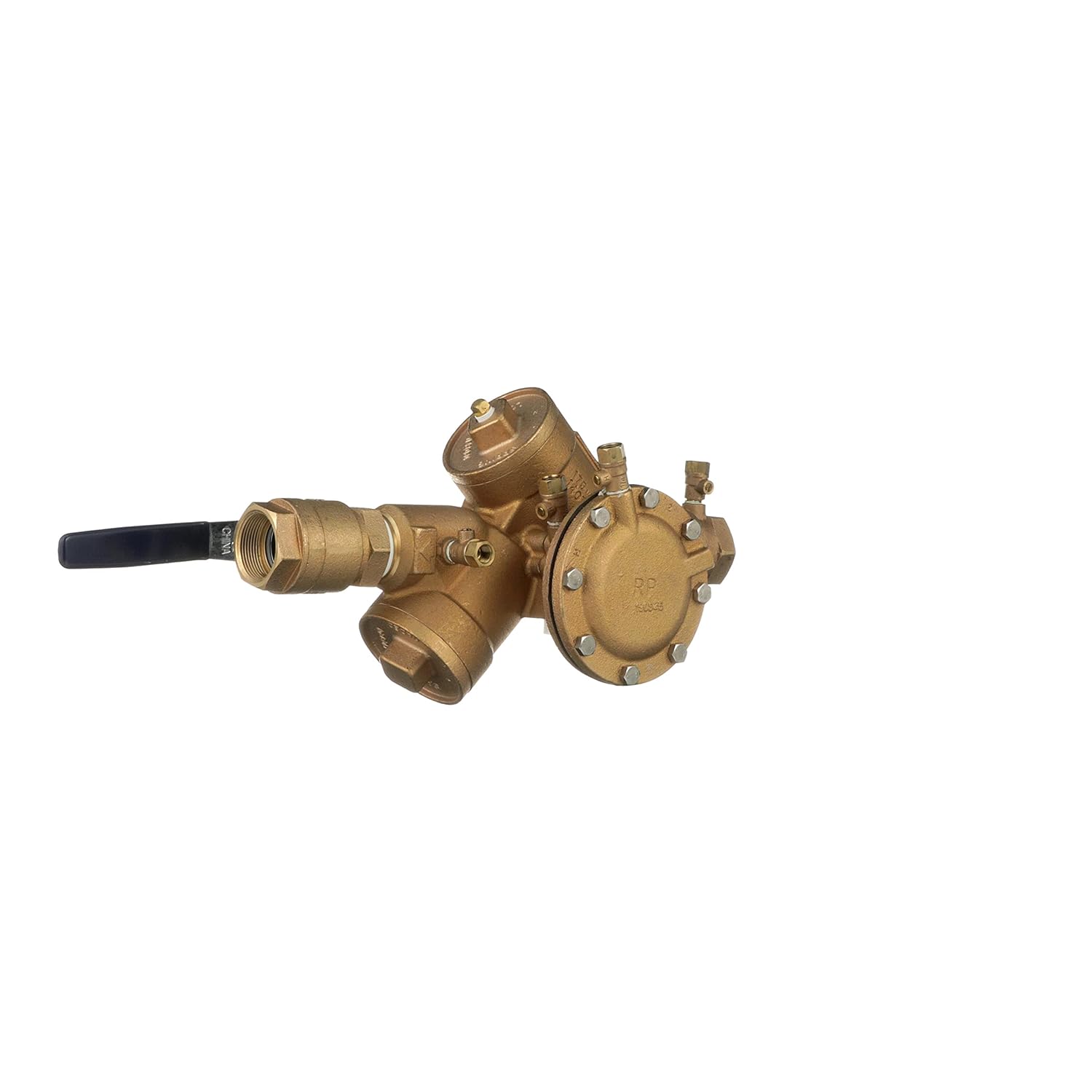

The Febco 825GBV 1 1/2" Reduced Pressure Zone Assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern Check Valve s, and one hydraulically dependent differential relief valve. From the Manufacturer

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Bronze body
• Modular relief valve and Check Valve s for easy maintenance
• Quarter turn shutoff valves

Weight	26.5 lb
Collection	825Y
Connection Size	1-1/2 in.
Connection Type	Threaded
Height	10.50 in.
Length	9.00 in.
Type	Reduced Pressure Zone (RPZ) Assemblies
Width	5.00 in.
Inventory Number	FEBF825GBV
MPN	F825GBV
