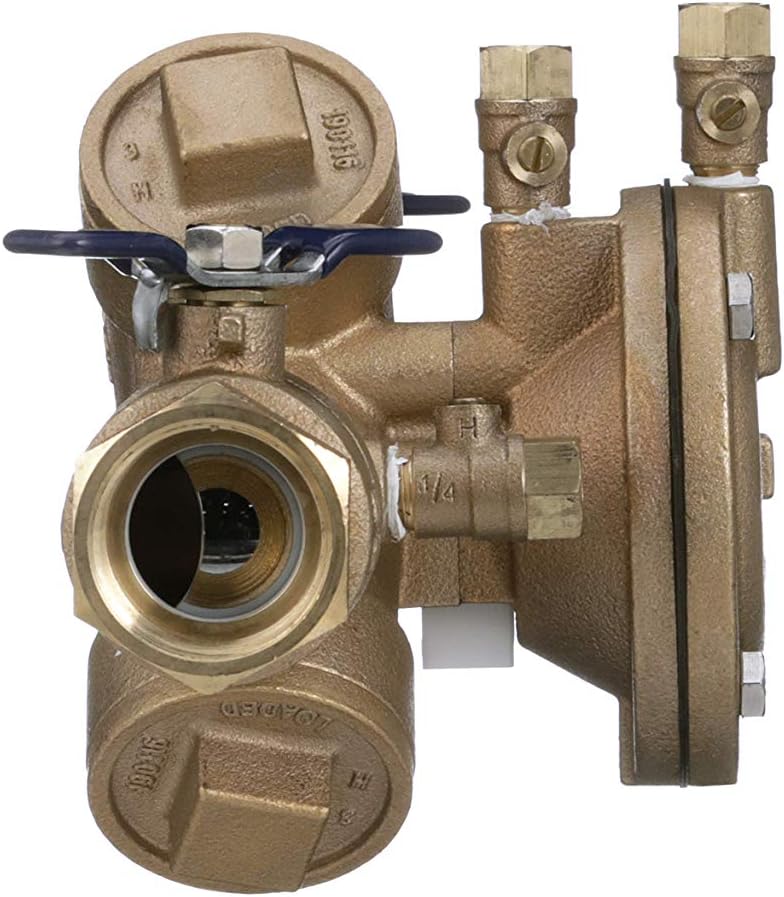

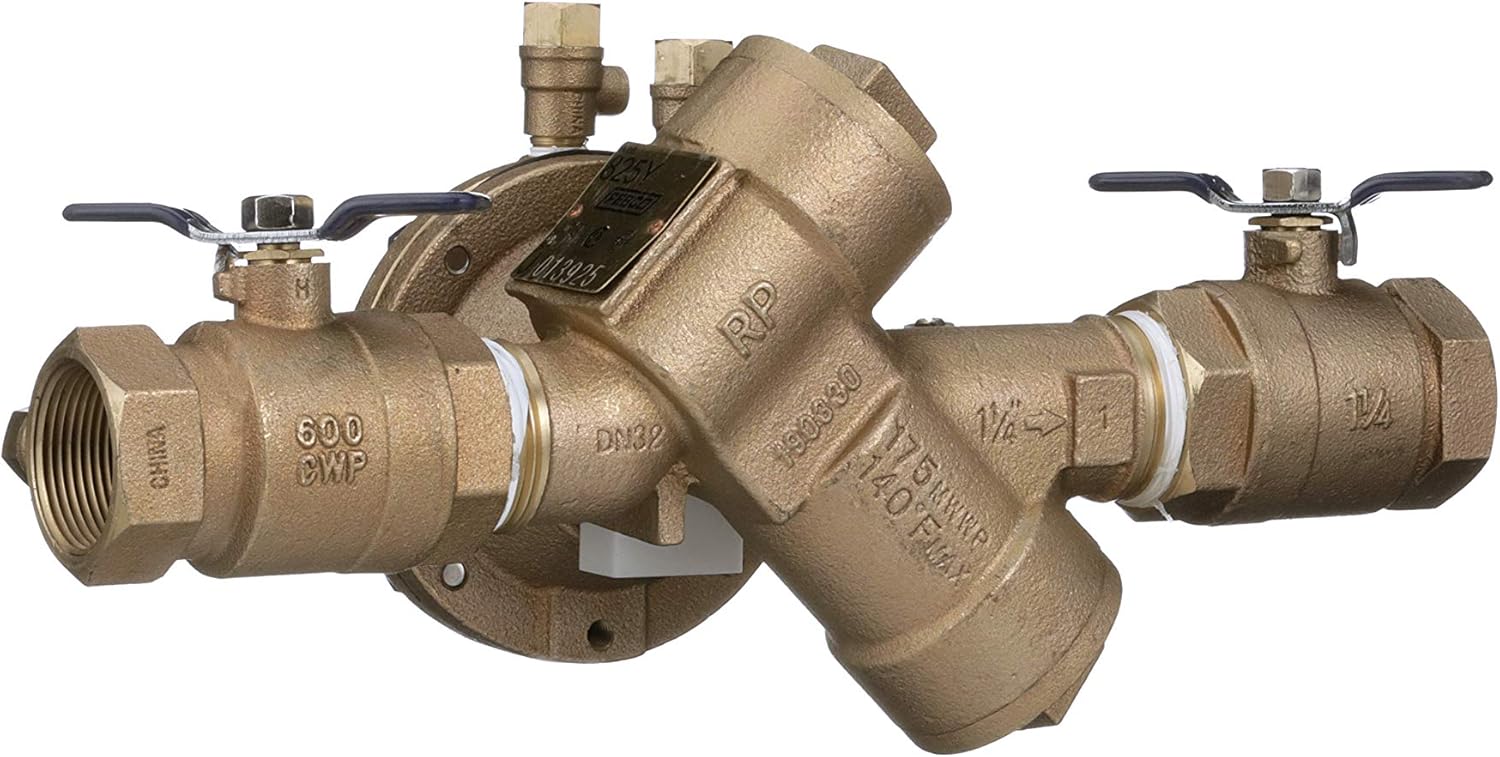

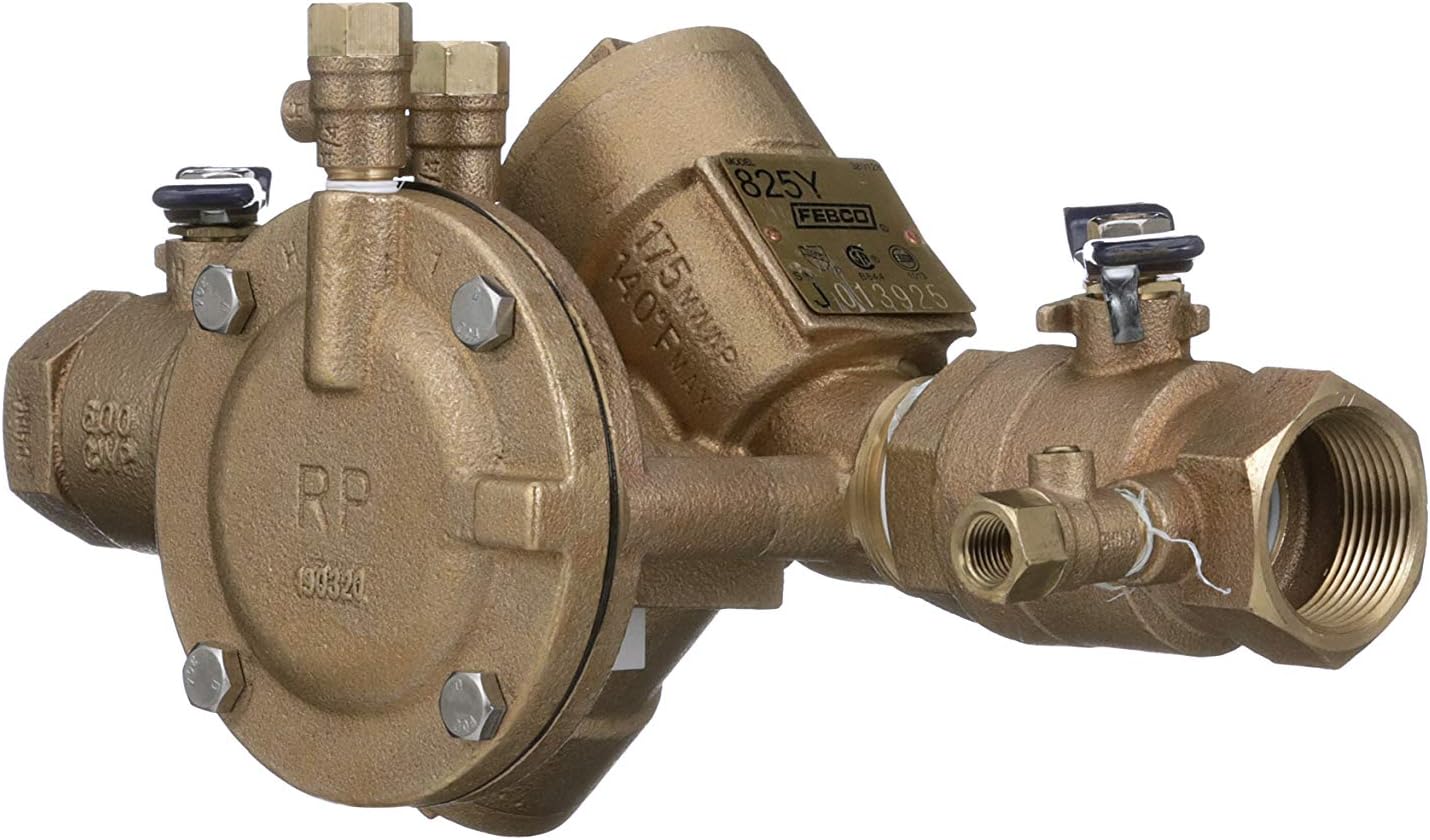

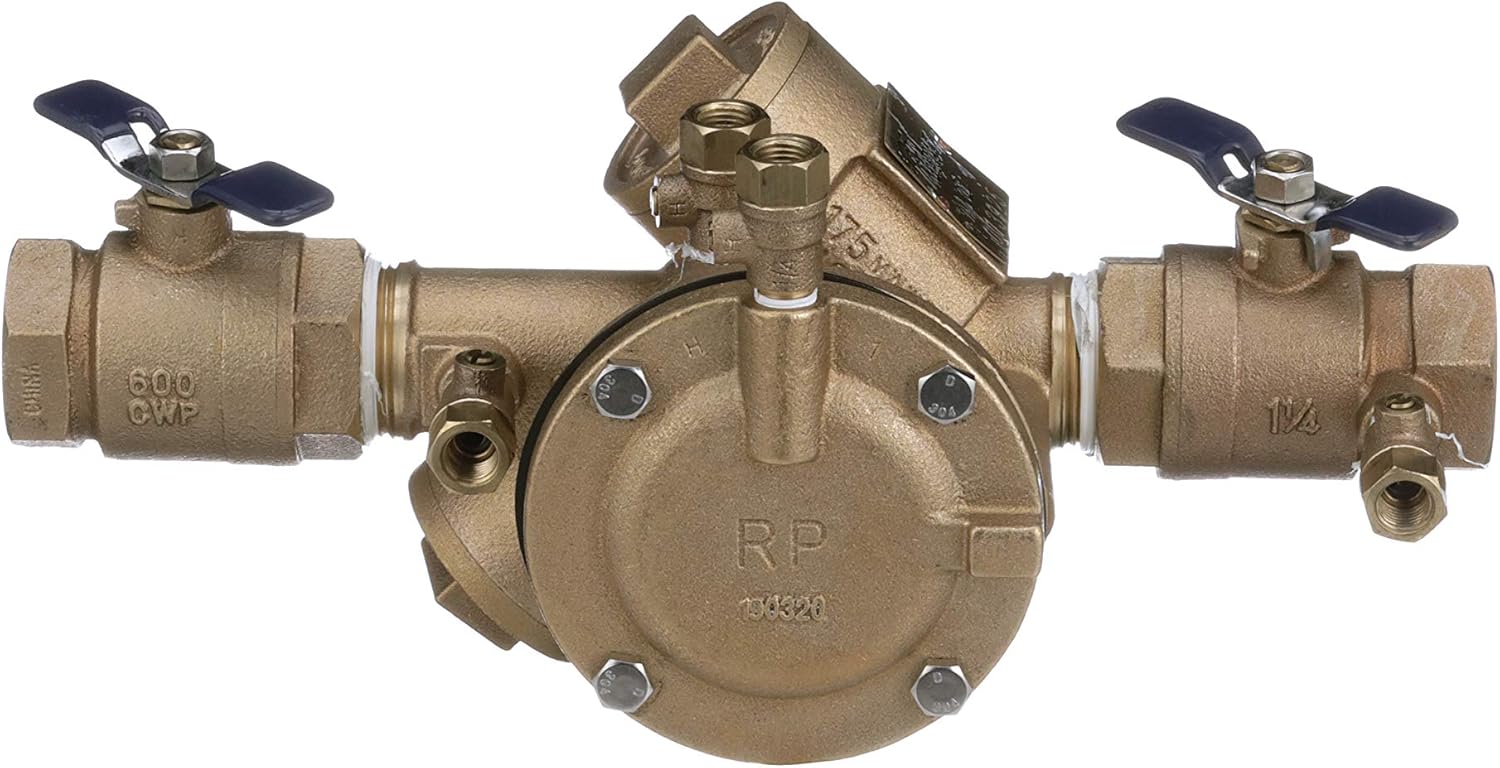

This 1-1/4" inch Y pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern Check Valve s, and one hydraulically dependent differential relief valve.

• Bronze body construction for durability and long life
• Modular relief valve for easy maintenance
• Replaceable seat rings for longer valve life
• NPT end connection
• Meets all specifications of AWWA, ASSE
• Low head loss for optimum performance
• Quarter turn ball valves
• Stainless steel springs
• Nitrile elastomers

Weight	19.0 lb
Collection	825Y
Connection Size	1-1/4 in.
Connection Type	Threaded
Height	10.50 in.
Length	9.00 in.
Type	Reduced Pressure Zone (RPZ) Assemblies
Width	5.00 in.
Inventory Number	FEBF825FBV
MPN	F825FBV
