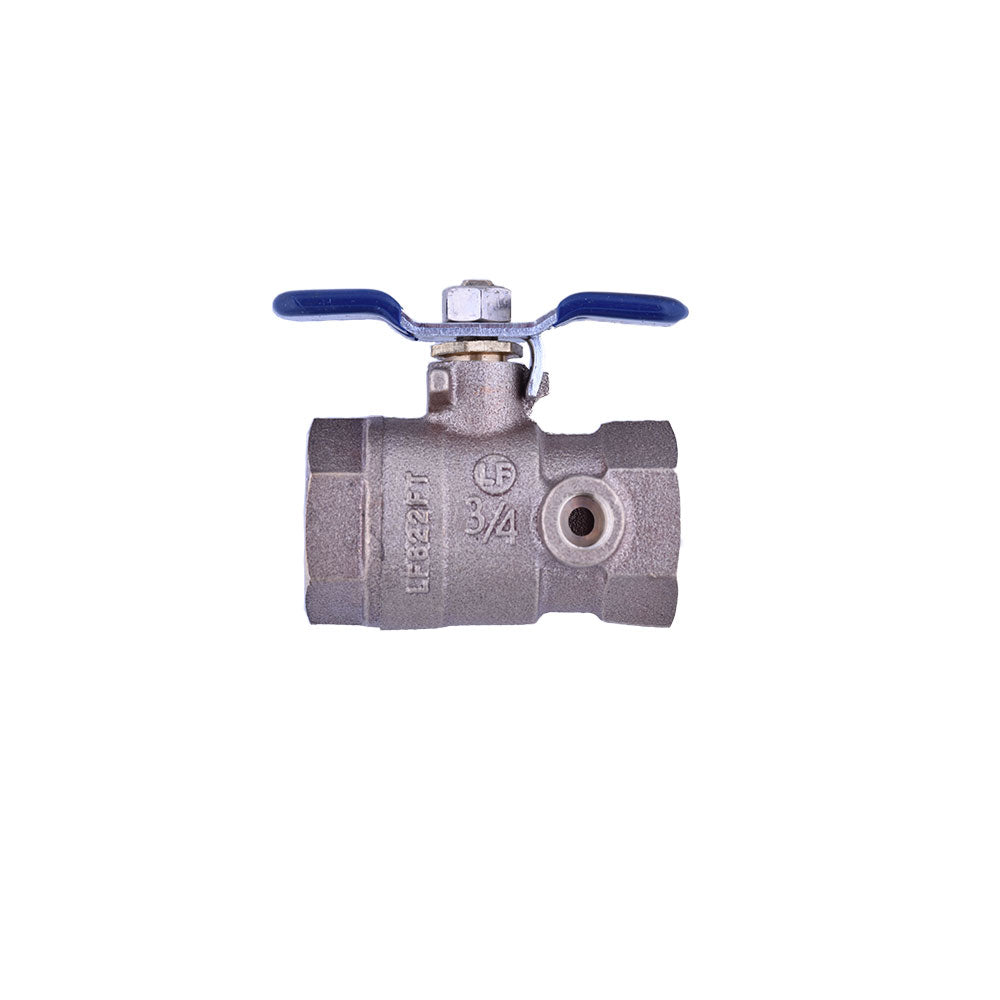

Series LF622F Lead Free* full port ball valves are designed for steam service applications. They are ideal for throttling and balancing of nonabrasive fluids where minimum flow is 20% to 100% of valve capacity. The full port design ensures minimal pressure drop. These valves feature a PTFE stem packing seal, thrust washer, and seat. They are available with tapped outlets suitable for the installation of a pressure gauge or test cock. Maximum working pressure: 600psi (41.3 bar) WOG; 125psi (8.6 bar) WSP.

• Threaded Testcock Port
• Full Port
• T-Handle
• Bronze Construction

Weight	0.75 lb
Connection Size	3/4 in.
Height	5.16 in.
Length	2.48 in.
Type	Ball Valves
Width	2.28 in.
Inventory Number	FEB781053LL
MPN	781053LL
