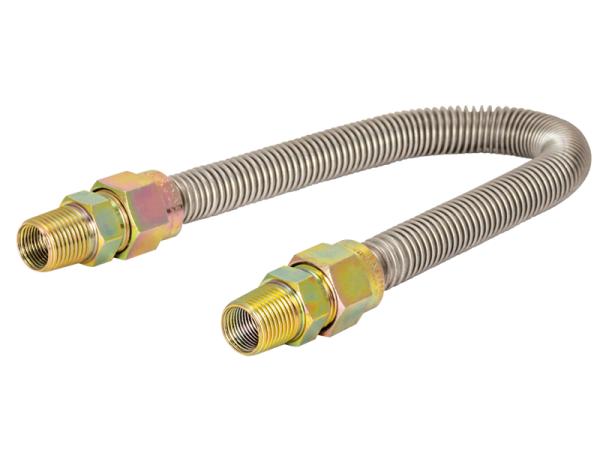

The Eastman 30SS505024 is a 24-inch stainless steel gas connector designed for connecting gas ranges, boilers, and high-usage appliances to shut-off valves. It features a 5/8-inch OD corrugated stainless steel tube with 1/2-inch MIP x 1/2-inch MIP fittings. The connector is 100% leak tested and certified to multiple ANSI and CSA standards, ensuring safety and reliability.

• 5/8" OD corrugated stainless steel tubing
• 24-inch length
• 1/2" MIP x 1/2" MIP fittings
• Suitable for natural gas and liquid propane
• 100% leak tested
• Certified to ANSI Z21.24/CSA 6.10, ANSI Z21.69/CSA 6.16, ANSI Z21.75/CSA 6.27
• Temperature rating: -20 degrees F to 150 degrees F
• Maximum gas rating: Up to 164,200 BTUs

Weight	0.9 lb
Color	Silver Tones
Connection Size	1/2 in.
Connection Type	Threaded
Finish	Stainless Steel
Height	1.00 in.
Length	1.00 in.
Type	Flexible Gas
Width	24.00 in.
Inventory Number	DORM30313124
MPN	30SS505024

• Specification Sheet
• Installation Instructions
• Warranty
