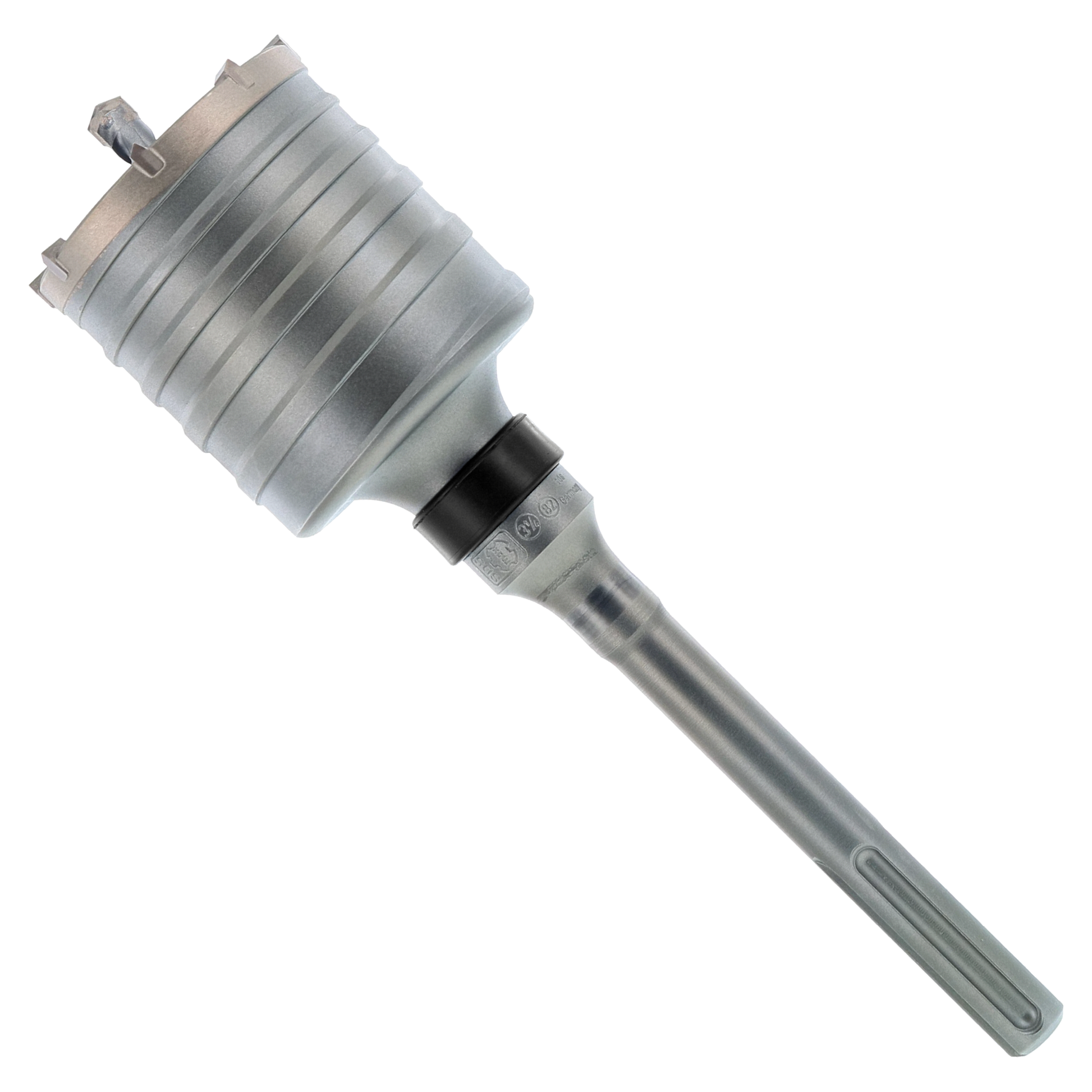

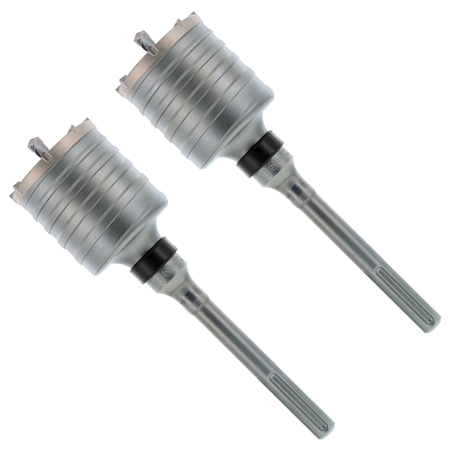

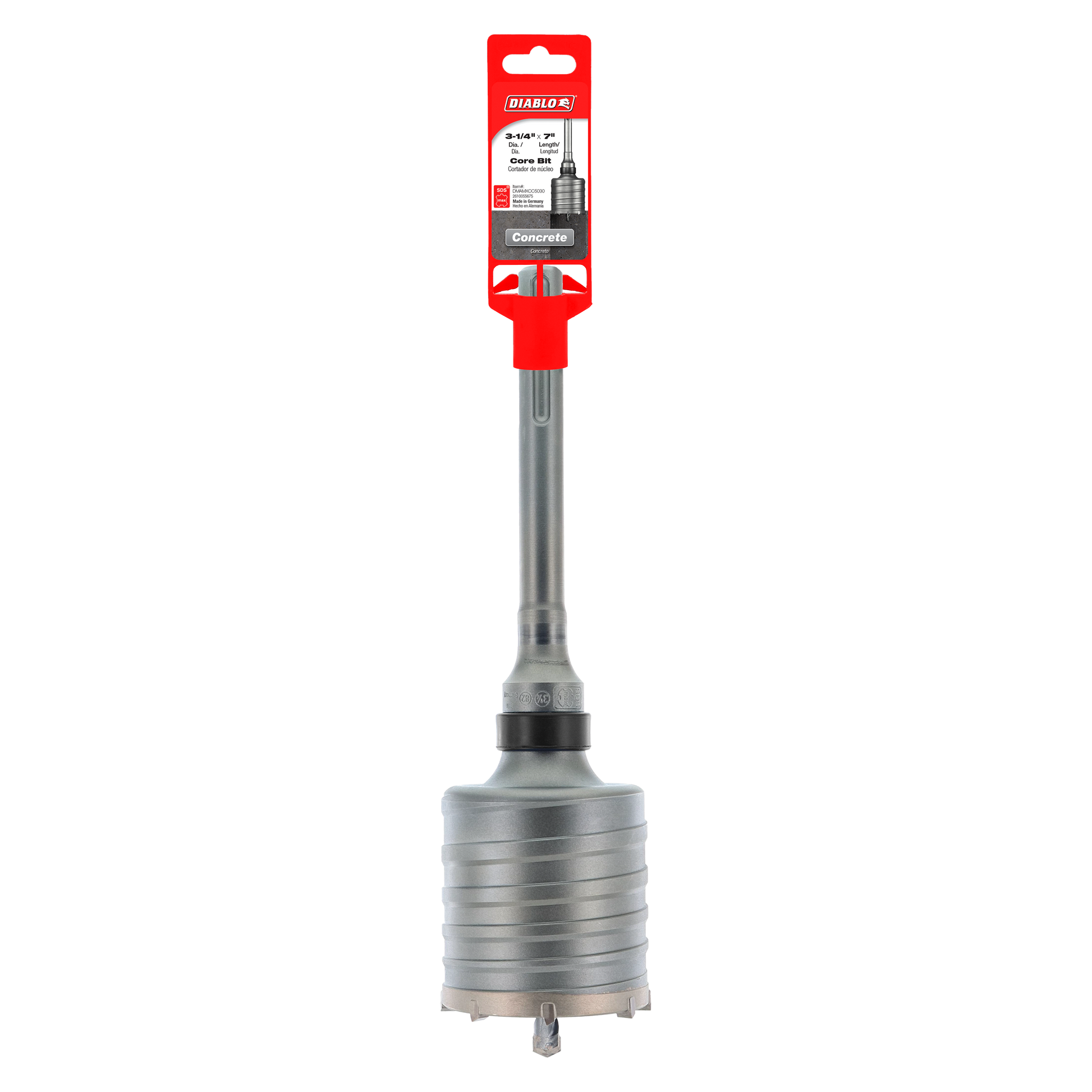

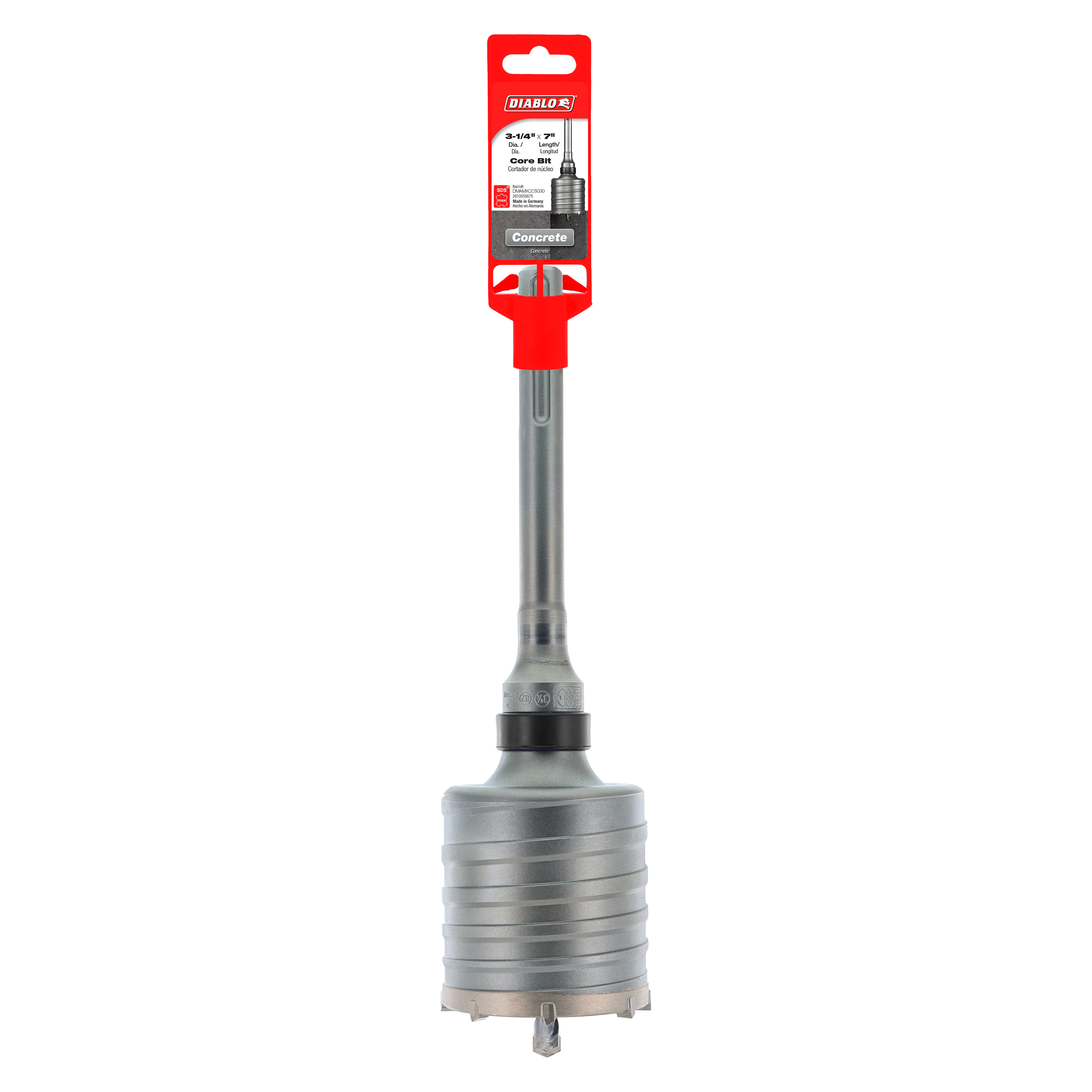

Diablo's SDS-Max carbide tipped core bit range provides one of the fastest and longest lasting coring solutions on the market for concrete applications. All-in-one design strengthens the bit from end-to-end in order to withstand the stress and impact of high-powered hammer drills in concrete. A spiral flute design removes dust faster, keeping the carbide teeth cooler for ultimate strength and durability. Optimized for maximum performance in corded and cordless SDS-Max rotary hammers.

• Carbide teeth withstand impact and high heat applications for superior life and productivity versus standard core bits
• Peak Point Tip design for aggressive starts that produce clean, fast holes. Off-set carbide teeth produce fast, clean holes.
• One piece design strengthens the bit extreme impact resistance and stability
• For drilling large holes up to 4 in. diameter
• Maximum performance in SDS-Max rotary hammers

Weight	4.18 lb
Height	15.50 in.
Length	3.25 in.
Width	3.25 in.
Inventory Number	DIADMAMXCC5030
MPN	DMAMXCC5030
