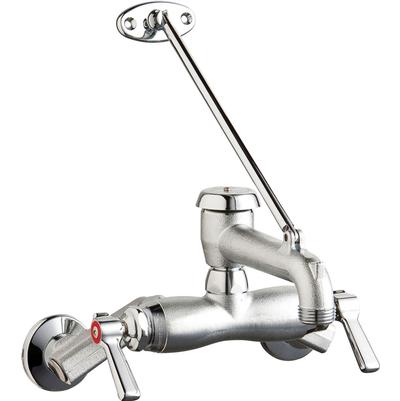

Chicago Faucets No. 445-VBRRCF, Sink Faucet for hot and cold water, wall mounted 3-3/8" body with adjustable arms for 3" - 8-3/8" centers. Rough chrome plated. Rigid spout with vacuum breaker, 3/4" male hose thread, and pail hook, 5-3/4" center-to-center. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn rebuildable compression cartridge, opens and closes 90 degrees , closes with water pressure, features square, tapered stem. 2-1/2" offset supply arm with integral shut-off stop, 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications.

• Complies with the requirements of the Buy American Act of 1933.
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees F
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
• ADA Compliant
• Meets ASME and NSF/ANSI/CAN 61 Standards

Weight	6.3 lb
Collection	445 Series
Color	Silver Tones
Control Type	Manual
Faucet Holes	2
Finish	Rough Chrome
Handle Type	Lever
Height	11.88 in.
Installation Type	Wall Mount
Length	4.12 in.
Number of Faucet Handles	2
Number of Faucet Holes	2
Number of Handles	2
Room	Kitchen
Type	Commercial Kitchen Faucets
Width	6.56 in.
Inventory Number	CHF445VBRRCF
MPN	445-VBRRCF

• Spec Sheet
• Parts Drawing
• Installation Instructions
