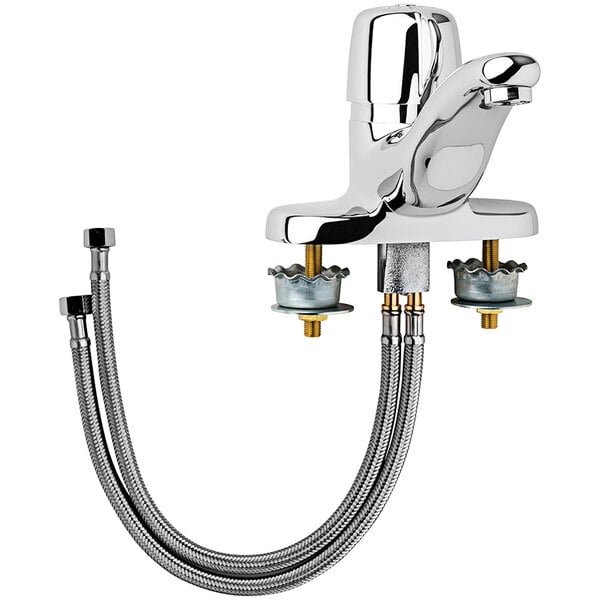

Outfit Chicago Faucets 3600-E2805AB 0.5 GPM MeterMix Deck-Mount Metering Lavatory Faucet (4" Centers)

Give high-traffic restrooms a durable, water-saving upgrade. The Chicago Faucets 3600-E2805AB combines a timed self-closing metering cartridge with a dependable cast-brass body to curb waste and keep maintenance simple. Its 0.5 GPM non-aerating laminar outlet supports hygiene and code goals, while ECAST low-lead construction and ADA compliance check critical boxes for commercial projects. Flexible 3/8" compression supply hoses come pre-attached for a clean, fast install on 4" centers.

• Brand: Chicago Faucets
• MPN: 3600-E2805AB
• Type: Deck-mounted MeterMix metering lavatory faucet, 3-hole 4" centers
• Size/Capacity: 0.5 GPM (1.9 L/min) laminar, non-aerating outlet; metering cycle adjustable ~2�25 seconds; 0.20 gal per cycle
• Material/Finish: ECAST low-lead cast brass body and integral cast-brass spout; polished chrome finish
• Performance: Rated operating pressure 20�125 psi; rated operating temperature 40�140 �F; MVP self-closing, auto-timed metering cartridge
• Connections/Fit: 4" fixed centers; pre-attached braided supply hoses with 3/8" compression ends; max deck thickness ~1-1/8" (29 mm)
• Dimensions: Approx. 6" W � 4-3/4" H; spout reach 5-5/8"; spout clearance ~3"
• Included: Faucet body with integral spout; flexible supply hoses (3/8" compression)
• Pack size: 1 Pack (also available in a 10-pack)
• Certifications: ASME A112.18.1/CSA B125.1; ADA ANSI/ICC A117.1; CALGreen compliant; NSF/ANSI/CAN 372 (Low Lead); NSF/ANSI/CAN 61 (Q ? 1); Buy American Act compliant
• Warranty: Lifetime limited faucet; 5-year limited cartridge; 1-year limited finish

Save Water, Control Usage

The MVP self-closing metering cartridge delivers a consistent, timed flow then shuts off automatically�helping reduce waste and tampering in busy restrooms. Cycle time is field-adjustable from roughly 2 to 25 seconds, and the design limits each activation to 0.20 gallon to support conservation targets.

Quiet, Hygienic Laminar Flow

A 0.5 GPM Econo-Flo non-aerating laminar outlet minimizes splash and helps limit air entrainment�a smart choice for healthcare, education, and food-service spaces where handwashing needs to stay clean and controlled.

Durable ECAST Low-Lead Brass

Heavy-duty cast-brass construction (0.25 weighted lead content) is built for the long haul and supports low-lead requirements. The polished chrome finish resists daily wear and cleans up with mild soap and water.

Installer-Friendly On 4" Centers

Fixed 4" centers make retrofits straightforward, and the factory-attached braided hoses with 3/8" compression ends speed hook-up. The faucet accommodates deck thickness up to about 1-1/8" for flexibility on typical lavatory tops.

Right-Sized For Small Lavs

A compact 6" width and 5-5/8" spout reach fit tight lavatories without crowding. With about 4-3/4" overall height and ~3" spout clearance, the profile balances accessibility and splash control at common sink depths.

Built To Code, Backed For Years

The 3600-E2805AB carries key listings�including ASME/CSA, ADA, CALGreen, and NSF low-lead�so specification and inspection are simpler. Chicago Faucets backs the body for life, the cartridge for five years, and the finish for one year.

Weight	5.0 lb
Height	9.00 in.
Length	7.00 in.
Type	Commercial Kitchen Faucets
Width	7.00 in.
Inventory Number	CHF3600E2805AB
MPN	3600-E2805AB
