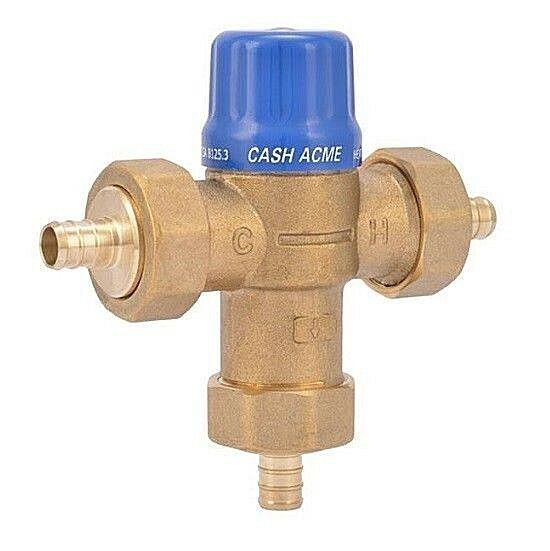

Brass thermostatic mixing valve with blue cap and barb connections on horizontal side ports.

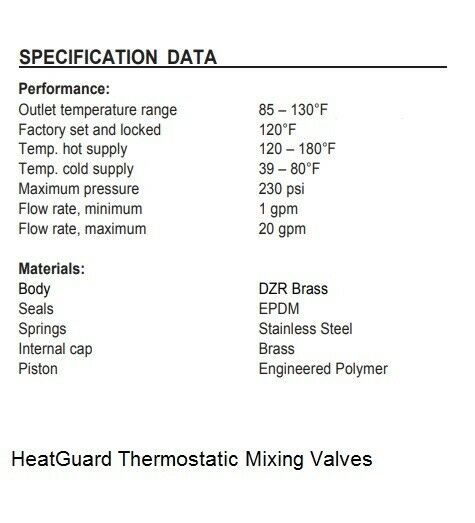

Specification data sheet showing performance and materials information for a thermostatic mixing valve.

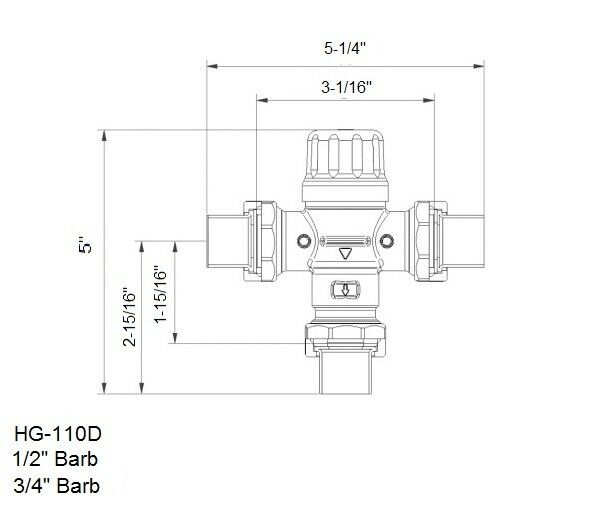

Cash Acme HG110-D thermostatic mixing valve with barb connections, top-down technical drawing with dimensions.
Brass thermostatic mixing valve with blue cap and barb connections on horizontal side ports.
Specification data sheet showing performance and materials information for a thermostatic mixing valve.
Cash Acme HG110-D thermostatic mixing valve with barb connections, top-down technical drawing with dimensions.

Cash Acme HG110-D 1/2 in Thermostatic Mixing Valve with Barb Connections 24506

Cash Acme HG110-D 1/2 in Thermostatic Mixing Valve with Barb Connections 24506

SKU #: CAS24506

MPN #: 24506

UPC #: 697285245068

$155.46
$155.46 $0.00
MSRP: $235.20
  • Ships Free

Hurry up, only 7 items left in stock.

Project Pricing

Get Accurate Project Pricing for Your Plumbing Needs

Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.

Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
Mixing valve designed to regulate water temperature
Brass thermostatic mixing valve with blue cap and barb connections on horizontal side ports.

Cash Acme HG110-D 1/2 in Thermostatic Mixing Valve with Barb Connections 24506

$155.46
$155.46 $0.00

Free Shipping on Everything

In-Stock Items Ship Next Day

Our Experts are Ready to Help

Only Top-Quality Brands

CASH ACME HG110-D Thermostatic Mixing Valve with 1/2" Barb Ends

The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120F (49C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140F (60C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each heatguard valve is factory set and locked to a maximum 120F (49C). Adj. outlet temperature range: 85-130F (29-54C)

Application

Domestic and Commercial hot water distribution. To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories, or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control).

Approvals and Listings

  • ASSE 1017, 1069 & 1070
  • CSA B125.3
  • NSF/ANSI 372
  • NSF/ANSI 61
  • Listed by ASSE, CSA, IAPMO

*Note - Fittings look very similar in design, so please check data and specifications to be sure you are ordering the correct valve for your application.
