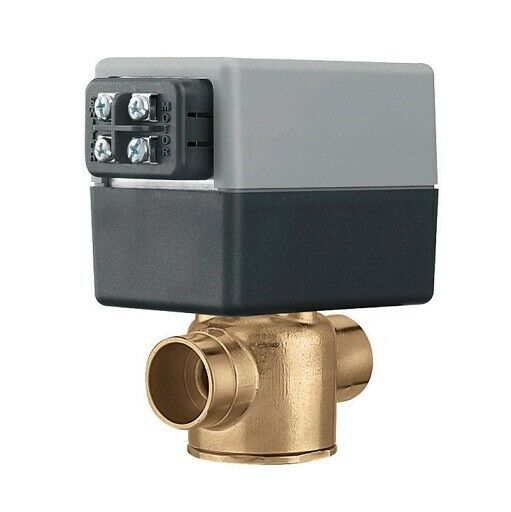

Caleffi Z55PL Zone Valve 3/4 Inch Press
Caleffi Z55PL Zone Valve 3/4 Inch Press
Hurry up, only 9 items left in stock.
Project Pricing
Get Accurate Project Pricing for Your Plumbing Needs
Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.
Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
Couldn't load pickup availability
Z55S Z-one 2-way (sweat)
- Includes 3/4" Press Fittings
- Two-way zone valve
- Spring return
- Normally closed actuator
- Auxiliary micro-switch
- Max body pressure: 300 psi
- Temp range: 32 - 240F
- Suitable fluids: water, 50% max glycol, 15 psi max steam
- Power Supply: 24 VAC
- Power Consumption: 5 W, 7 VA
- Rating of auxiliary micro-switch contacts: 0.0 A min, 0.4 A max 24 V (24 V only)
- Screw terminal connection
- UL 873, cUL Listed and CE
- UL 1995 Sec. 18 air plenums and ducts
- Includes 3/4" Press Fittings
- Two-way zone valve
- Spring return
- Normally closed actuator
- Auxiliary micro-switch
- Max body pressure: 300 psi
- Temp range: 32 - 240F
- Suitable fluids: water, 50% max glycol, 15 psi max steam
- Power Supply: 24 VAC
- Power Consumption: 5 W, 7 VA
- Rating of auxiliary micro-switch contacts: 0.0 A min, 0.4 A max 24 V (24 V only)
- Screw terminal connection
- UL 873, cUL Listed and CE
- UL 1995 Sec. 18 air plenums and ducts
Install the Z-one valves together with our ZVR relay and qualify for an industry exclusive five year warranty.
| Weight | 2.2 lb |
|---|---|
| Height | 10.00 in. |
| Length | 10.00 in. |
| Material | Brass |
| Type | Zone Valves |
| Width | 10.00 in. |
| Inventory Number | CALEZ55PL |
| MPN | Z55PL |
