Caleffi Z55 Two-Way Motorized Zone Valve - 3/4" Sweat

Z-one 2-way Motorized Zone Valves (with screw terminal connection)

• Two-way zone valve
• Spring return
• Normally closed actuator
• Auxiliary micro-switch
• Max body pressure: 300 psi
• Temp range: 32? - 240?F
• Suitable fluids: water, 50% max glycol, 15 psi max steam
• Power Supply: 24 VAC
• Power Consumption: 5 W, 7 VA
• Rating of auxiliary micro-switch contacts: 0.0 A min, 0.4 A max 24 V (24 V only)
• Screw terminal connection
• UL 873, cUL Listed and CE. UL 1995 Sec. 18 air plenums and ducts

Install the Z-one valves together with our ZVR relay and qualify for an industry exclusive five year warranty.

Want to learn more about this Zone Valve with Terminal Connection? Read our blog about boiler repair parts here.

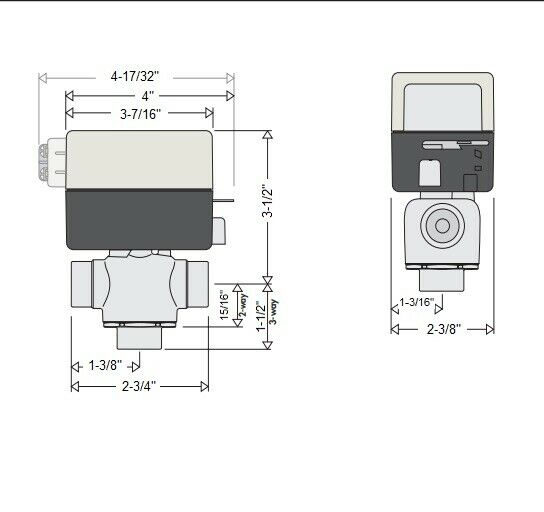

Weight	2.2 lb
Height	2.75 in.
Length	5.00 in.
Material	Brass
Type	Zone Valves
Width	2.38 in.
Inventory Number	CALEZ55
MPN	Z55
