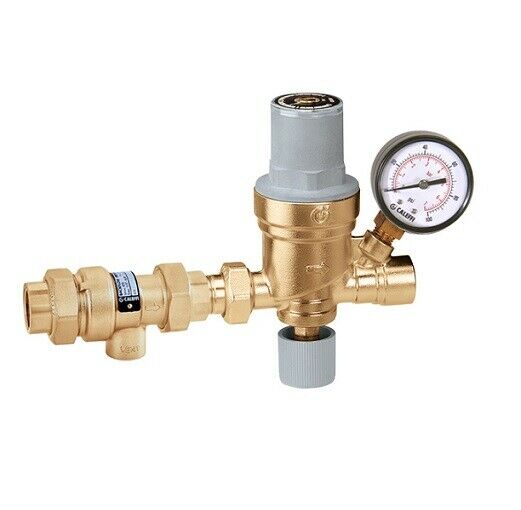

573 AutoFill Combo (with backflow preventer and pressure gauge)

Pre-adjustable automatic boiler fill valve with backflow preventer and pressure gauge.

• 1/2" Press x 1/2" Press
• Pre-adjustable, automatic filling valve with backflow preventer
• Brass body
• Max inlet pressure: 175 psi
• Max working temp: 150?F
• Setting pressure range: 3 - 60 psi
• Pressure gauge scale: 0 - 60 psi / 0-4 bar
• Preset outlet pressure: 15 psi

Weight	5.0 lb
Height	7.00 in.
Length	9.00 in.
Material	Brass
Type	Pressure Valves, Radiator Valves
Width	5.00 in.
Inventory Number	CALE573016A
MPN	573016A
