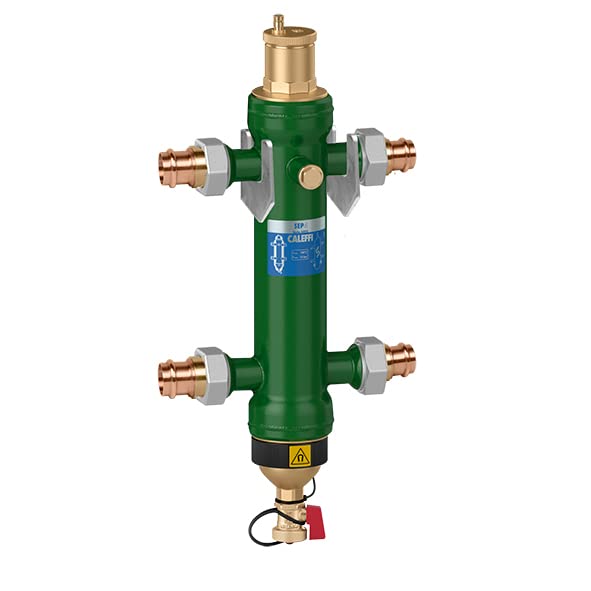

Combination air, dirt, hydraulic and magnetic separator. Epoxy resin coated steel body. HDPE internal coalescing element, removable for cleaning. Pre-formed insulation. Max working pressure: 150 psi Working temp range: 32˚ - 210˚FWorking temp range without insulation: 32˚ - 230˚F Particle separation capacity: to 5 μm (0.2 mil)Ferrous impurities separation efficiency: 100%Air separation efficiency: 100% to microbubble level. Complete with union connections.Thermowell tap: " female Technical Brochure

Weight	19.05 lb
Height	6.00 in.
Length	6.00 in.
Room	Kitchen
Type	Air Valves
Width	6.00 in.
Inventory Number	CALE549597A
MPN	549597A
