For point of distribution in domestic water systems and radiant hydronic heating systems.

Low-lead: Brass valve body.

Internal anti-scale materials.
Peroxide-cured EPDM seals.

Locking set point knob.

Max working pressure: 200 psi
Max recommended differential pressure: 20 psi
Max inlet temp: 200?F
Adjustable range: 85? - 150?F

Min flow for optimum performance: 1.0 gpm

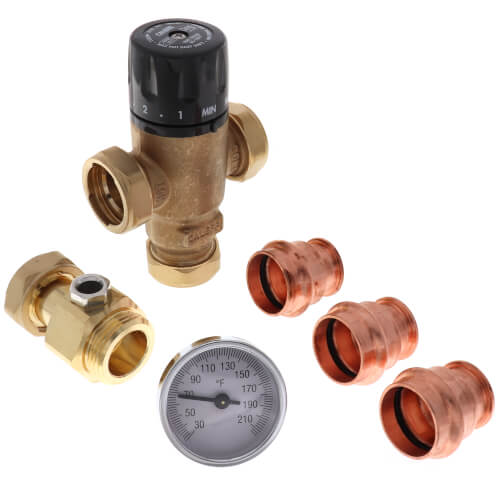

Available with or without gauge:
Gauge scale: 30? - 210?F
Gauge accuracy: ± 6?F
Gauge dial: 2" diameter

Compliance with the following codes: IPC, IRC, UPC and NPC for use in accordance with the U.S. and Canadian plumbing codes

Compliance with the following standards:

• ASSE 1017-2009
• CSA B125.3-2012
• NSF/ANSI 372 - 2016, Drinking Water System Components - Lead Content
• Reduction of Lead in Drinking Water Act, California Health and Safety Code 116875
• S.3874, Reduction of Lead in Drinking Water Act

Weight	3.11 lb
Height	8.63 in.
Length	5.88 in.
Material	Brass
Type	Mixing Valves
Width	2.56 in.
Inventory Number	CALE521616A
MPN	521616A
