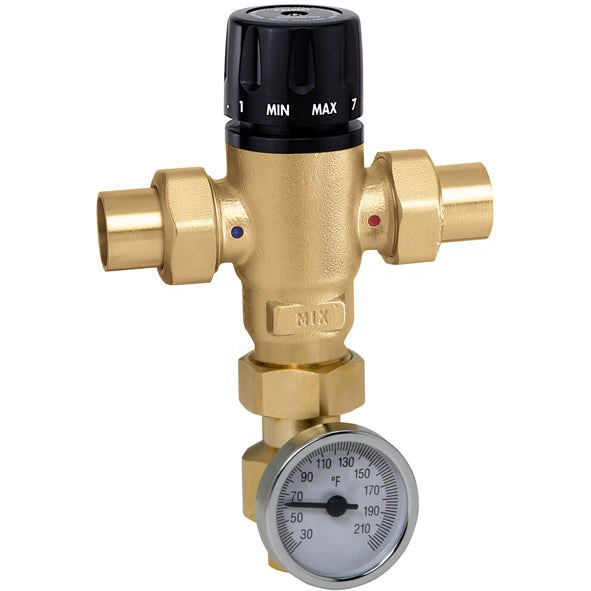

For point of distribution in domestic water systems and radiant hydronic heating systems.

Low-lead brass valve body.

Internal anti-scale materials.
Peroxide-cured EPDM seals.

Locking set point knob.

Max working pressure: 200 psi
Max recommended differential pressure: 20 psi
Max inlet temp: 200?F
Adjustable range: 85? - 150?F

Min flow for optimum performance: 1.0 gpm

Gauge scale: 30? - 210?F
Gauge accuracy: 6?F
Gauge dial: 2" diameter

Compliance with the following codes: IPC, IRC, UPC and NPC for use in accordance with the U.S. and Canadian plumbing codes

Compliance with the following standards:

• ASSE 1017
• CSA B125.3
• NSF/ANSI 372 - Drinking Water System Components - Lead Content
• Reduction of Lead in Drinking Water Act - California Health and Safety Code 116875
• S.3874 - Reduction of Lead in Drinking Water Act
• Vermont Act 193 - The Lead in Plumbing Supplies Law
• Maryland's Lead Free Law Hb.372

Weight	2.91 lb
Connection Type	Sweat
Height	7.19 in.
Length	5.00 in.
Material	Brass
Type	Mixing Valves
Width	1.00 in.
Inventory Number	CALE521519A
MPN	521519A
