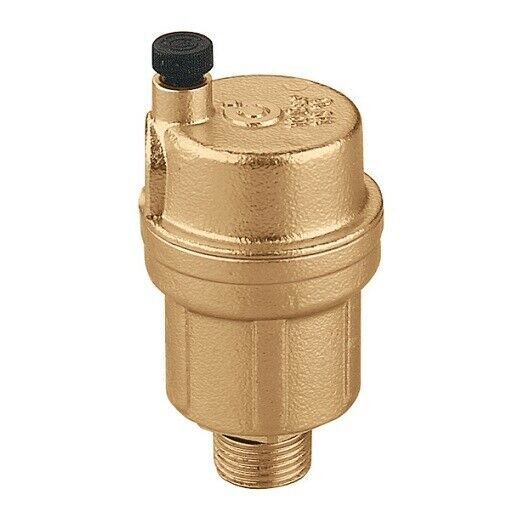

5026 Robocal Automatic Air Vent

Float type automatic air vent designed to vent air from water at high points in plumbing system piping. Example applications include risers, domestic hot water storage tanks and recirculation system pump inlets. The automatic air vent is installed in the vertical position in parts of the system where air has possibility accumulated. It is supplied complete with a safety hygroscopic cap that automatically closes the air discharge in case of contact with water.

Description:

• Brass Body
• Max working pressure: 150 psi
• Max discharge pressure: 90 psi
• Max discharge rate: 1.75 SCFM
• Max working temp: 240?F

Weight	0.35 lb

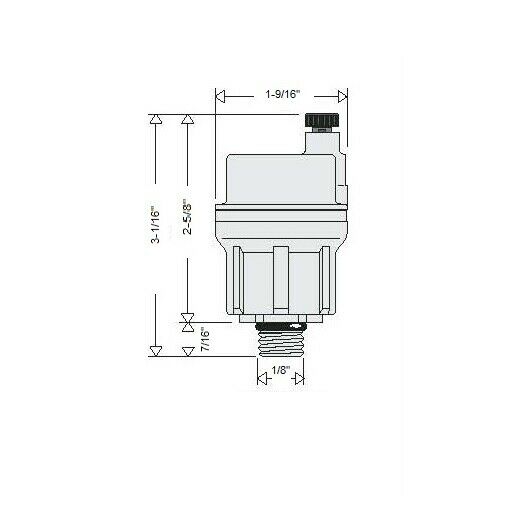

Height	3.60 in.
Length	1.80 in.
Material	Brass
Type	Air Valves
Width	1.80 in.
Inventory Number	CALE502610A
MPN	502610A
