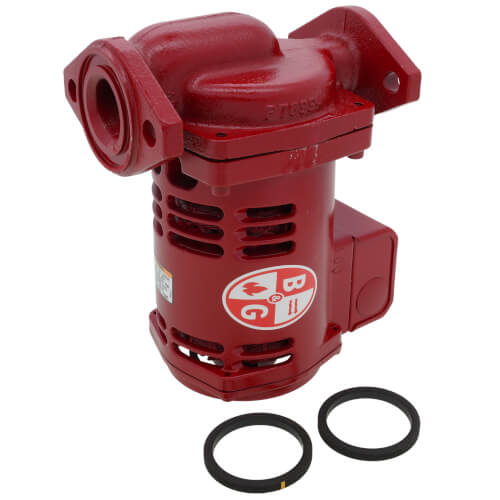

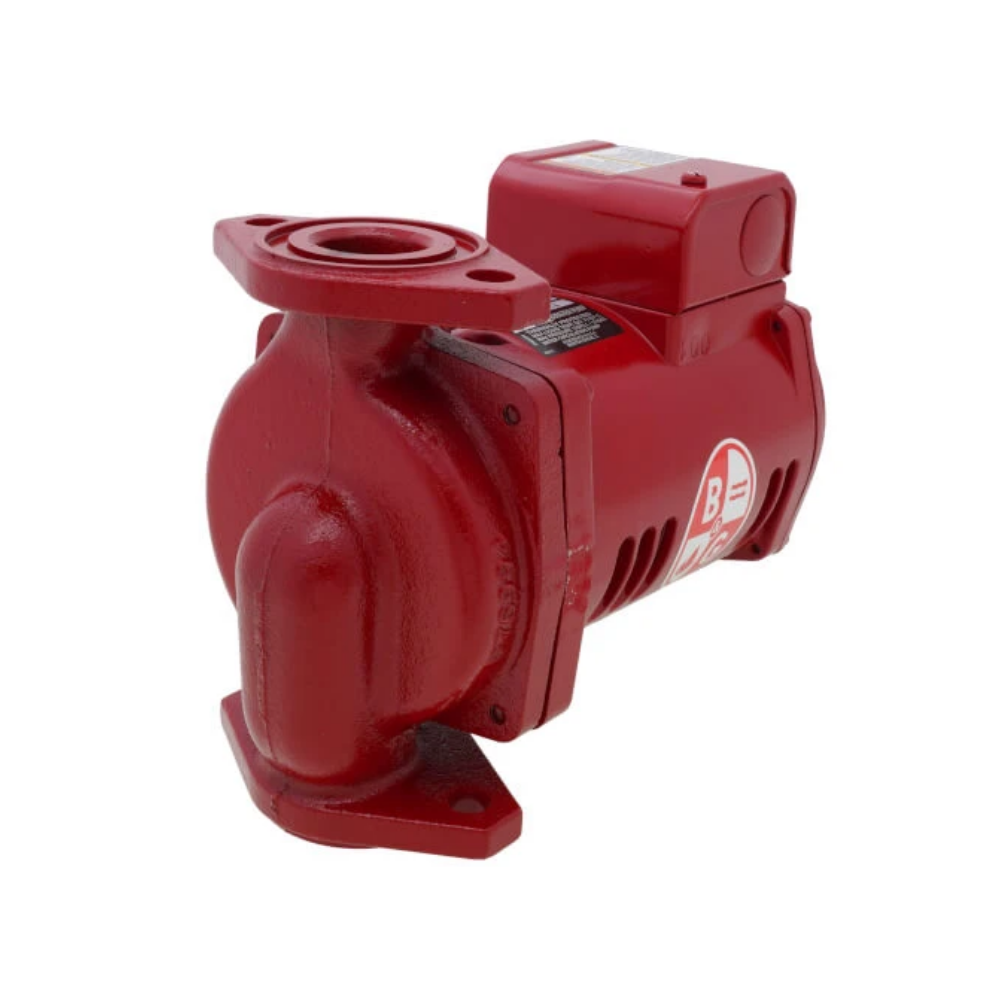

Bell & Gossett Series PL PL-36 1/6 HP 115V 40 GPM Maintenance Free Cast Iron Circulator Pump - 1BL001
Bell & Gossett Series PL PL-36 1/6 HP 115V 40 GPM Maintenance Free Cast Iron Circulator Pump - 1BL001
Regular price
$539.26
Sale price
$539.26
Regular price
$0.00
MSRP: $838.00
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
The series PL close coupled booster pumps are specifically designed for quiet operation in hyrdronic, radiant and geothermal heating and cooling systems.
- Cast Iron Body
- 30% Glass Filled Noryl Impeller
- 1/6 HP Motor
- 115V
- 1 Speed
- 40 GPM Max Flow
- 38 ft Max Head
- 3300 RPMs
- Compatible Flange Sizes: 3/4", 1", 1-1/4", 1 1/2"
- Maximum Working Pressure: 150 PSI
- Maximum Operating Temperature: 225 degrees F
- B&G's powerful, dry-motor design delivers exceptional performance 25% more efficient than competition.
- Precision-machined and balanced alloy steel rotor for superior performance.
- Quick-connect wire nut leads and dual knock-outs make for fast, sure hook-ups.
- Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
- XL-11 Precision-Crafted Bearing System is permanently oil lubricated, completely maintenance free, precisely positioned for long-life, and isolated for quiet operation
- Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal startups and can easily handle difficult water conditions.
- Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation.
- Double sided I-Seal design for optimum efficiency
| Weight | 13.1 lb |
|---|---|
| Certifications | UL Listed |
| Collection | Series PL |
| Color | Solid Colors |
| Connection Size | 3/4 in. |
| Flow Rate | 40 GPM |
| Height | 6.38 in. |
| Horse Power | 1/8 |
| Inlet Size | 3/4 in. |
| Length | 8.63 in. |
| Material | Cast Iron |
| Room | Utility |
| Voltage | 115V |
| Width | 4.38 in. |
| Inventory Number | BEG1BL001 |
| MPN | 1BL001 |
| Amps | 2.2 |
