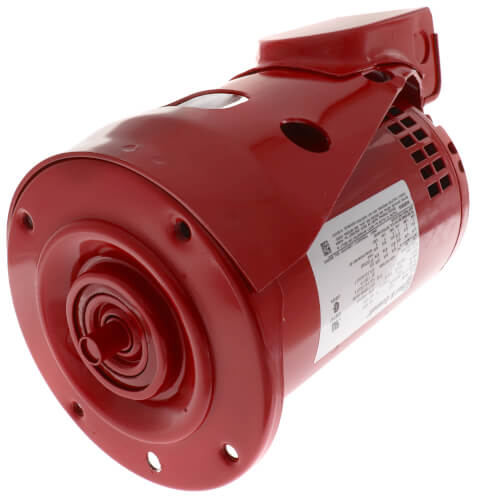

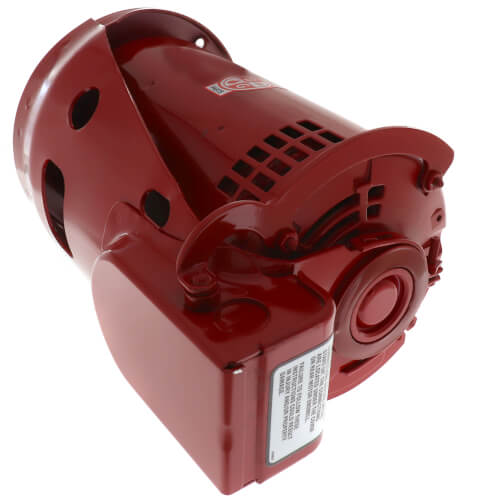

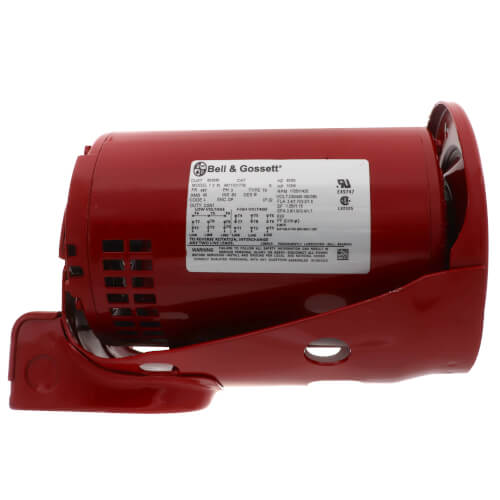

Replacement Motor for Series 60 and PD Pumps

• The special two-piece motor bracket for easy service
• Oil lubricated motors have sleeve bearings and replaceable, resilient motor-mounts
• Modern, built-in thermal overload protector shuts off-the motor if it overheats
• 1 HP
• 1725 RPM
• 208 TO 230/460V
• 60 HZ
• Used in the following pumps: PD-38, PD-39, Series 60 except 1 x 5-1/4, 1-1/4 x 5-1/4,

Weight	20.0 lb
Certifications	UL Listed
Collection	Series 60
Color	Gray Tones
Height	10.00 in.
Horse Power	1
Length	17.25 in.
Material	Steel
Room	Utility
Voltage	460V
Width	10.00 in.
Inventory Number	BEG169233
MPN	169233
Amps	4
