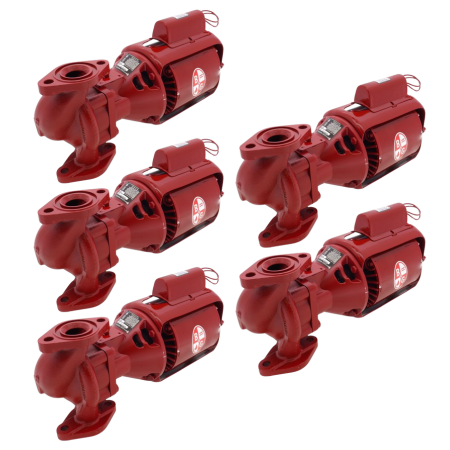

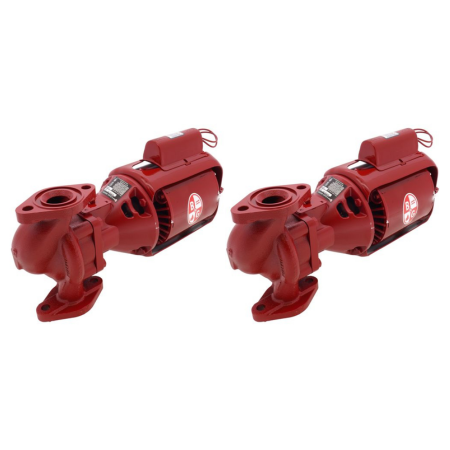

Bell & Gossett Booster Pumps feature oil lubricated sleeve bearings, a carbon/ceramic seal and a noise dampening spring coupler. Bell & Gossett Booster Pump motors are designed specifically for quiet operation and are built with thermal protection and drip-proof construction. The motor is nonover-loading at any point on the pump curve. This pump is nonsubmersible, for indoor use only. Bell & Gossett Pumps may be used for water circulating applications in hydronic, solar and chilled water systems. Bell & Gossett recommends that bronze constructed pumps be used for pumping potable water.

• Cast Iron Body
• Non Ferrous Impeller
• 1/12 HP Motor
• 115V with built-in overload protection
• 1 Speed
• 33 GPM Max Flow
• 8 ft Max Head
• The finest circulator motor available. Sleeve bearing, oil lubricated with replaceable resilient motor mounts.
• Noise dampening coupler. B&G's own flexible spring design adds to quiet operation.
• Long bronze sleeve bearings maintain exact shaft alignment.
• Provides for constant circulation of oil over bearing surfaces.
• The B&G mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems.
• Centrifugal Impeller prevents accumulation of air at seal faces to assure long life.
• Close Impeller /body tolerances minimize water slippage and maximize efficiency.
• Precision ground pump shaft, oversized to provide large bearing surfaces ensuring long seal and bearing life
• Compatible Flange Size: 3/4", 1", 1-1/4", 1-1/2"
