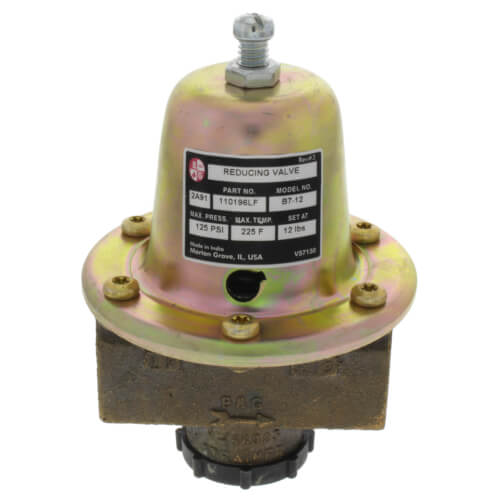

This low pressure reducing valve is equipped with a low inlet pressure Check Valve and removable strainer. It is suitable for use in buildings with a maximum of three floors.

• Pressure Set Point: 12 psig
• Connection Type: FNPT x FNPT
• Size: 3/4"
• Min Pressure (PSIG): 10
• Max Pressure (PSIG): 25
• Material: Lead Free Brass
• Application: Heating
• Temperature Range (F): 225 degree F Max

Weight	2.25 lb
Certifications	ASSE Certified, NSF 61, NSF 372
Color	Gold Tones
Connection Size	3/4 in.
Connection Type	Threaded
Height	4.97 in.
Inlet Size	3/4 in.
Length	3.00 in.
Material	Brass
Type	Pressure Valves, Radiator Valves
Width	3.00 in.
Inventory Number	BEG110196LF
MPN	110196LF

• Brochure
• Installation Instructions
• Submittal
