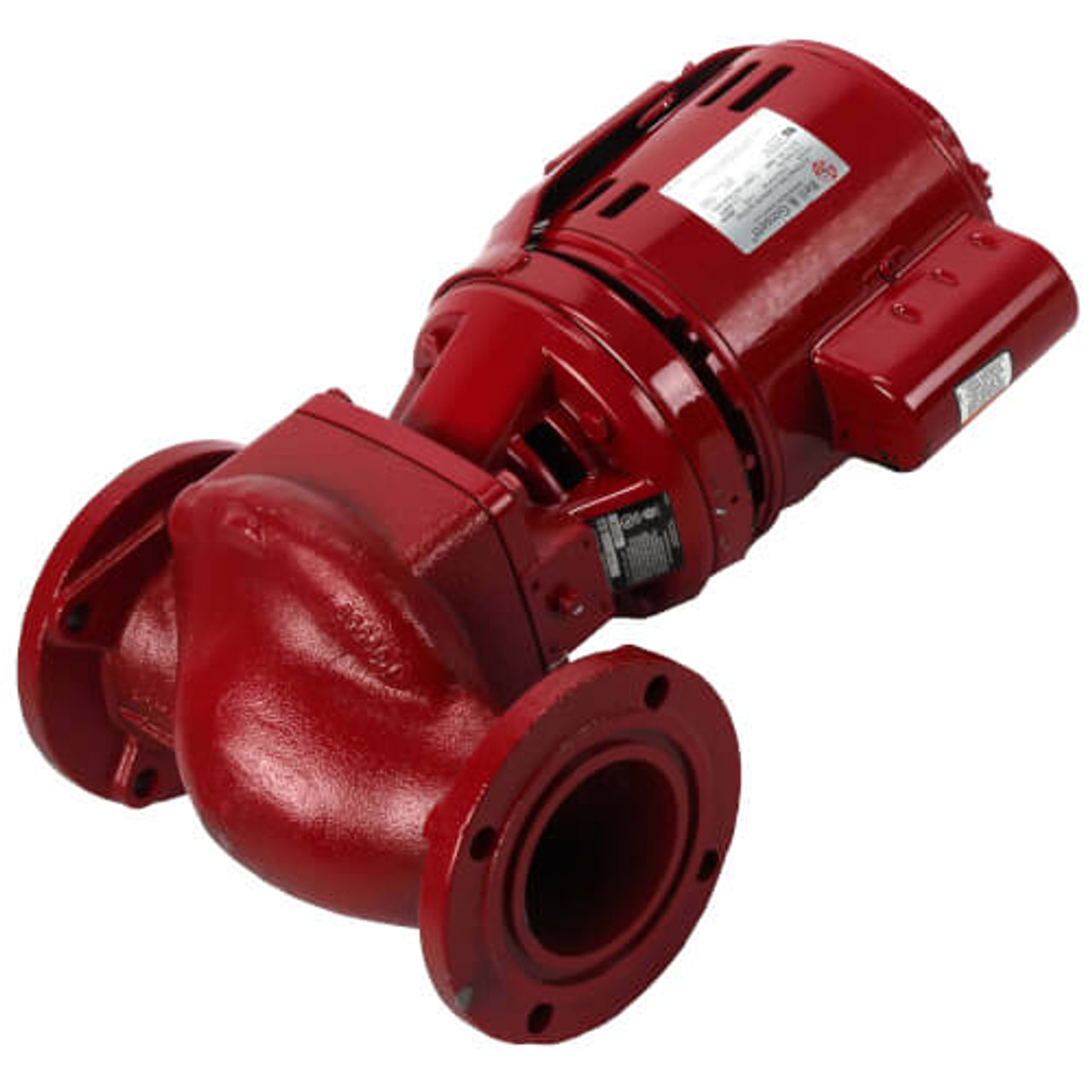

Bell & Gossett Series 2-1/2" 1/4 HP 115V 110 GPM Oil Lubricated Three Piece Cast Iron Circulator Pump with Non Ferrous Impeller - 102218

Power Bell & Gossett 102218 2-1/2" 1/4 HP Oil-Lubricated Three-Piece Cast-Iron Circulator

Move hot water reliably in closed-loop hydronic systems with the Bell & Gossett 102218 (Series 2-1/2, Model 2-1/2 IB). This oil-lubricated, three-piece inline booster is built for long service with quiet, resilient motor mounts and sleeve bearings. The 115 V, 1/4 HP motor is designed for 1725 RPM operation, and a pair of 2-1/2" flanges is included to streamline change-outs. Rated for up to 125 psi and 225 °F (standard seal), it’s a dependable upgrade for residential and light commercial hydronic circulation.

• Brand: Bell & Gossett
• MPN: 102218 (Series 2-1/2, Model 2-1/2 IB)
• Type: Oil-Lubricated Three-Piece Inline Booster / Circulator (closed-loop hydronic)
• Size/Capacity: 1/4 HP (≈0.19 kW); 115 V; 1725 RPM
• Material/Finish: Cast-iron volute; steel impeller (IB); non-ferrous/bronze impeller available on related BI model and as service part
• Performance: Max working pressure 125 psi; max operating temperature 225 °F with standard seal (250 °F with special seals)
• Connections/Fit: 2-1/2" flanged inline connections; pair of 2-1/2" flanges included; ODP motor
• Dimensions: Approx. 17-1/4" L × 10" H (width/install clearance layout-dependent; see submittal)
• Included: Pump, (2) 2-1/2" flanges; typical kits include flange gaskets, mounting hardware, and B&G oil tube
• Warranty: 12 months from installation or 18 months from shipment (whichever first); see B&G terms

Everyday Performance You Can Count On

Built for hydronic heating and cooling loops, the 102218 circulates reliably across long duty cycles. Oil-lubricated sleeve bearings, close impeller/volute tolerances, and a resilient motor mount help maintain efficiency and smooth operation over years of use.

Three-Piece, Serviceable Design

The classic B&G layout—motor, bearing assembly, and volute—means you can service the bearing/shaft/seal assembly without disturbing piping. That reduces downtime and keeps total maintenance cost low across the pump’s life.

Quiet, Oil-Lubricated Operation

Bronze sleeve bearings circulate oil over bearing surfaces for low noise and long wear. A spring-type flexible coupler further damps vibration for quiet performance in occupied spaces.

Installer-Friendly Connections

Standard 2-1/2" flanged ends drop into existing inline layouts, and the included flange set speeds replacement. The 115 V, single-phase ODP motor simplifies power and start-up.

Sized Right For Retrofits

With an overall length around 17-1/4" and low profile about 10" high, the Series 2-1/2 fits common mechanical-room clearances. Verify width and service access against your submittal before setting the flanges.

Materials To Match Your System

The 102218 “IB” ships with a cast-iron body and steel impeller for closed-loop heating. For non-ferrous requirements or potable water, choose the sister “BI” bronze-impeller model (102219) or use the bronze impeller service part.

Built For Closed-Loop Hydronics

Designed for hot-water circulation in sealed systems, the pump is rated to 125 psi and to 225 °F on a standard seal—with higher-temperature special-seal options when needed.
