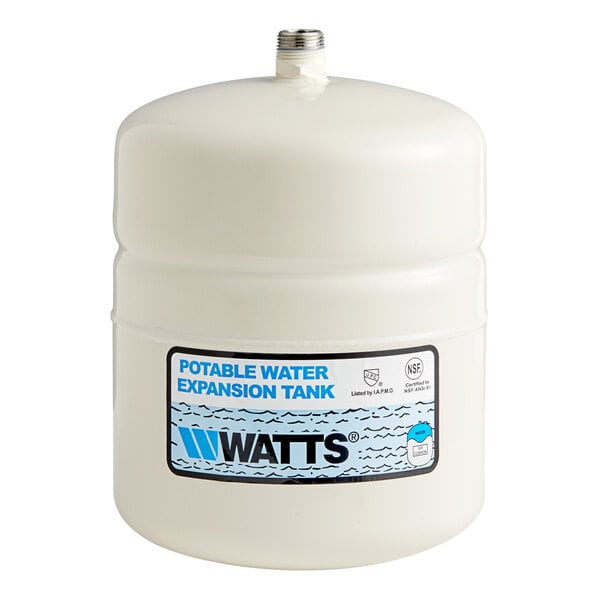

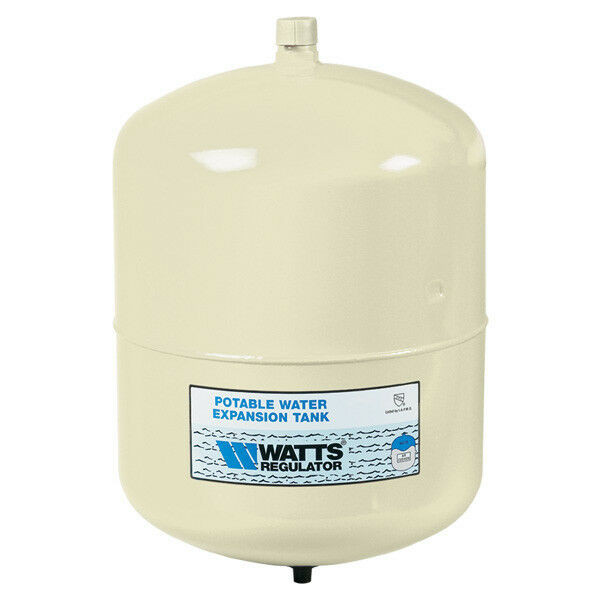

Watts 0067370 PLT-5 Potable Water Expansion Tank, 2.1 Gallon Tank
- SKU #: WAT0067370
- UPC #: 098268095739
- MPN #: 0067370
Project Pricing
Get Accurate Project Pricing for Your Plumbing Needs
Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.
Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
- Condition:
- New
- Availability:
- In Stock! Ships next business day
- Shipping:
- Free Shipping
Efficient Water Expansion Solutions: Watts 0067370 PLT-5 Potable Water Expansion Tank, 2.1 Gallon Tank
The Watts PLT Potable Water Expansion Tank is a reliable solution for absorbing increased water volume caused by thermal expansion in residential water heater and storage tank applications. With a pre-pressurized steel tank and expansion membrane, it ensures balanced pressure and eliminates air loss. This tank is compatible with various hot water heaters, is IAPMO listed and ANSI/NSF 61 certified, and has a maximum pressure rating of 150psi. Additional features include adjustable pre-charge, in-line and free-standing models, and compatibility with most standard hot water heaters and storage tanks.
- Brand: Watts
- MPN: 67371
- Body Material: Steel
- Diaphragm Material: Rugged flexible butyl
- Tank Volume: 2.1 gallons
- Diameter: 8"
- Length: 11"
- Connection Size: 3/4" (20 mm)
- Connection Type: MNPT
- PSi: 150
- Max Temperature: 200°F
- Certifications: Lead Free, ANSI/NSF 61, IAPMO Listed,
The Series PLT Potable Water Expansion Tanks (Lead Free) are specially designed to effectively absorb the increased volume of water resulting from thermal expansion, ensuring a well-balanced pressure throughout the potable water supply system. With their pre-pressurized steel tank and expansion membrane, these tanks prevent any contact between the water and the air inside, thus eliminating the risk of air loss and guaranteeing a long-lasting and trouble-free operation of the entire system. These tanks are compatible with all types of Direct Fired Hot Water Heaters (gas, oil, or electric) as well as hot water storage tanks. Notably, they are IAPMO listed and ANSI/NSF 61 certified, meeting the highest industry standards. With a maximum pressure rating of 150psi (10 bar), our Series PLT tanks are the reliable solution you need for your potable water expansion needs.
This potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. This field-adjustable steel tank is air pre-charged at 20 psi, volume 2.1 gallons, designed with an FDA-approved polypropylene liner and Butyl rubber diaphragm, copper-lined steel, and 3/4 inch male inlet connection. An expansion membrane prevents air-to-water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. The maximum pressure is 150 psi (10 bar).
Additional Features
- Air pre-charge at 20 psi
- Prevents over-pressure caused by thermal expansion
- Field adjustable pre-charge
- In-line and free standing models
- Can be used with most standard hot water heaters and storage tanks
Specification Sheet
- 3/4 in
- Thread
- 2.1 Gallons
